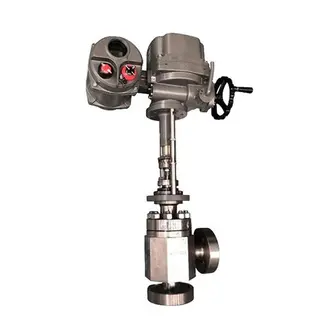

Product Name: Stainless Steel 304 Angle Control Valve
Key Features: Top-guided, Unbalanced Trim Structure
Material: Stainless Steel SS 304
Size: 1/2 Inch, DN15
Pressure: Class 2500 LB, PN420
End Connection: Flanged
Actuator: Pneumatic Linear Actuator
Leakage Class: ANSI/FCI 70-2 Class IV
Product Range
Body Material: Carbon Steel, Stainless Steel, Alloy Steel
Size Range: 1/2-2 Inch, DN15-DN50
Pressure Rating: Class 150-2500 LB, PN20-PN420
End Connection: Flanged, Welded (SW, BW)
Flow Characteristic: Linear, Equal Percentage
Fluid Temperature: -196°C to 550°C
Actuator Options: Pneumatic Actuators
Characteristics of Angle Control Valve
1. High-Pressure Compatibility: Designed to withstand high-pressure environments and suitable for handling fluids with slurry polymer crystals and high-temperature conditions.
2. Simplicity and Cost-Effectiveness: The valve features a simple structure coupled with easy maintenance, making it a cost-effective choice for control valve applications.
3. Size Limitations: The series has limitations on small valve sizes due to the unbalanced trim structure, with the maximum recommended valve size being DN50 to ensure optimal performance.
