T-port Ball Control Valve, SS 304, 3 IN, 150 LB, SW Ends

T-port Ball Control Valve, SS 304, 3 IN, 150 LB, SW Ends
T-port Ball Control Valve, SS 304, 3 IN, 150 LB, SW Ends

Key Specifications / Features

Model no.: CNCV-240620-BACV-01

Our T-port Ball Control Valve is crafted from robust Stainless Steel 304 and features a PTFE seal for optimal performance. Designed with a 3-inch size and Class 150 LB pressure rating, it is equipped with a socket weld connection for secure installation. The valve is operated by a reliable double-acting pneumatic actuator, ensuring precise control over fluid flow. It includes a convenient limit switch for accurate position indication, making it ideal for applications requiring dependable and efficient flow regulation in industrial environments.

Categories

Tags:

Detail Information


Product Name: T-port Ball Control Valve
Key Feature: 3 Way, T-port
Body Material: Stainless Steel SS 304
Sealing Material: PTFE Seal
Size: 3 Inch, DN80
Pressure: Class 150 LB, PN16
End Connection: Socket Weld Ends
Working Temperature: -20°C to 280°C
Actuation: Double Acting Pneumatic Actuator (with Limit Switch)
Air Supply Pressure: 2.5 to 8 Bar

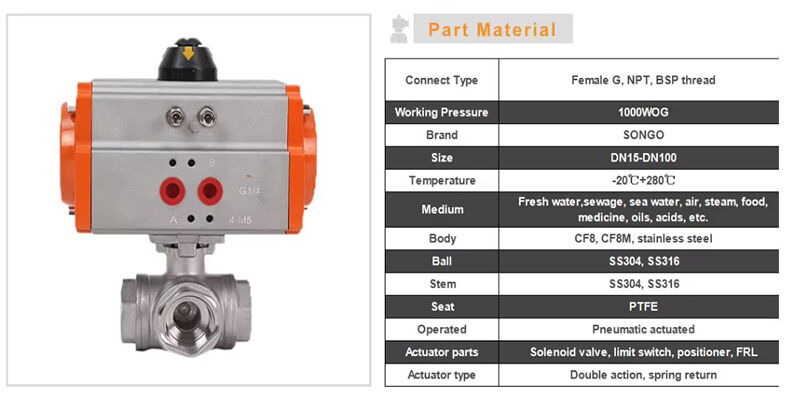

T-port Ball Control Valve Component Materials
