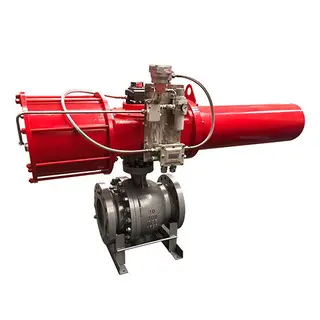

Product Name: Trunnion Mounted Ball Control Valve
Key Features: Trunnion Mounted, Top Entry
Size Range: 1-16 Inch, DN25-DN400
Pressure Range: Class 150-600 LB, PN25-PN100
Body Material: ASTM A216 WCC, ASTM A351 CF8M
End Connection: Flanged, Welded
Fire Safe: API 607
Rangeability: 150:1
Temperature Range: -200 °C to +600 °C
Flow Characteristics: Equal Percentage, Linear
Leakage: ANSI Class V (Metal Seat) and Class VI (Soft Seat)
Actuator Options:
1. Pneumatic Double Acting Actuator

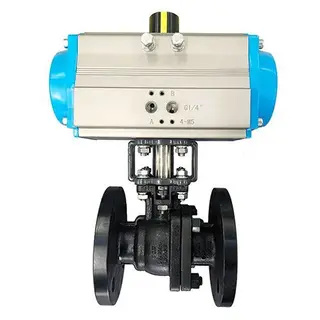

2. Pneumatic Spring Return Actuator
