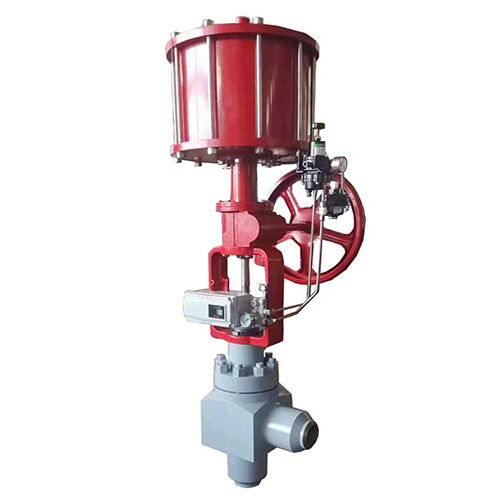

Product Name: Unbalanced Trim Angle Control Valve
Key Features: Multi-stage Pressure Drop, Sleeve Guided Unbalanced Trim, Single Seated
Size Range: 3/4-16 Inch, DN20-DN400
Pressure Rating: Class 150-1500 LB, PN20-PN250
Body Material: ASTM A216 WCB, ASTM A217 WC6, ASTM A352 LCB, ASTM A351 CF8, CF8M, CF3, CF3M, etc.
Seat Leakage: ASME B16.104 Class V (Standard Metal Seat), ASME B16.104 Class VI (Shut-off Soft Seat)
Connection: Flange, Butt Welding
Temperature Range: -196℃ to +570℃
Flow Characteristic: Equal Percentage, Linear, Quick Open
Actuator Options:
1. Pneumatic Diaphragm Actuator
2. Pneumatic Piston Actuator
3. Electric Actuator
