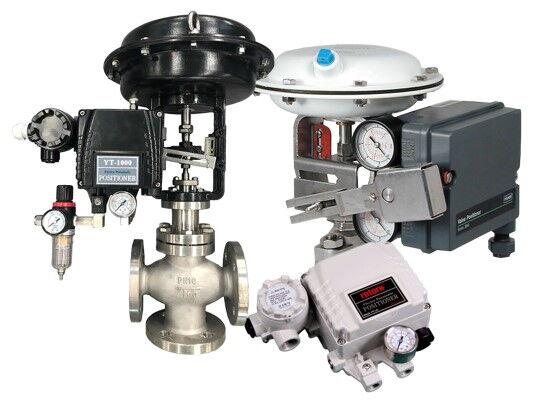

Control valve positioners are essential devices in modern industrial automation, designed to enhance the performance and response speed of control valves. Based on different input signals and working principles, control valve positioners can be categorized into various types, each suited for specific applications. Understanding these types and their applications helps in selecting the right positioner for optimizing system performance and ensuring stability and safety in production processes.

Functions and Importance of Control Valve Positioners


The primary functions of control valve positioners include the following aspects.

1. Enhanced Output Power


They improve the response capability of control valves, allowing for effective adjustments of flow, pressure, and temperature over a wider range. This enables the control system to adapt more quickly and accurately to process changes.

2. Reduced Signal Lag


Positioners shorten the signal transmission time from the control system to the valve actuator, ensuring rapid response and improving overall system efficiency.

3. Increased Valve Stem Movement Speed


Control valve positioners enable quick opening and closing of the valves, enhancing system efficiency and ensuring timely fluid control.

4. Improved Linearity


They enhance the stability and precision of control valves during regulation, ensuring optimal performance under various process conditions.
Through these functions, control valve positioners ensure that control valves remain in the correct position despite changes in process parameters, allowing for precise control.

Working Principle of Mechanical Control Valve Positioners


Mechanical control valve positioners consist of a pneumatic control part driven by mechanical devices. They regulate the valve opening based on the given signal through the interaction of an electromagnet and a spring. The working principle is as follows.
Compressed air enters the back pressure chamber of the nozzle through a fixed throttle opening, generating a specific pressure.
The gap between the nozzle and the baffle determines the airflow discharge. When the torque motor receives a 4–20 mA electrical signal, the armature rotates under the magnetic field's influence, gradually reducing the gap at the nozzle, which increases the back pressure.
The valve core moves upward due to the increased pressure in the supply air pressure chamber, opening the control valve. Simultaneously, the feedback rod drives the piston membrane rod to rotate, increasing the gap between the baffle and the nozzle to achieve balance in the valve opening.
This feedback mechanism ensures precise control of the valve, avoiding errors due to friction and unbalanced forces, thus stabilizing flow and pressure adjustments.

Working Principle of Electric Control Valve Positioners


Electric control valve positioners operate similarly to pneumatic positioners but differ in signal input and output. Their main working process is as follows:
Electric control valve positioners receive standard current or voltage signals (such as 4-20 mA or 1-5 VDC).
They are equipped with an I/P (current-to-pneumatic) converter that transforms the electrical signal into a pneumatic output signal (3-15 PSIG or 6-30 PSIG).
This pneumatic signal controls the cylinder's movement, adjusting the valve position. This type of positioner is typically used in applications requiring high electrical drive performance, providing precise control and strong power, especially in scenarios demanding quick response and high precision.

Classification and Applications of Control Valve Positioners


Control valve positioners can be categorized based on the type of input signal, each suited for specific applications.

1. Pneumatic Control Valve Positioners


With input and output signals as standard pneumatic signals (e.g., 20–100 kPa), they are widely used in systems requiring pneumatic signals, fitting most traditional pneumatic control applications.

2. Electrical Control Valve Positioners


These accept current or voltage signals (such as 4-20 mA or 1-5 V) and convert electrical signals into pneumatic signals, making them suitable for electrically driven devices, particularly common in electric control valve applications.

2. Smart Electric Control Valve Positioners


Equipped with a CPU, these can intelligently adjust based on the working status of the control valve, compensating for friction and pressure fluctuations. They enable smart configuration settings to optimize control valve performance, making them ideal for complex process control in industries like chemicals and pharmaceuticals.
Positioners can also be classified based on their action direction into unidirectional and bidirectional types. Unidirectional control valve positioners work in only one direction, while bidirectional ones can control in two directions to meet different process requirements.
Additionally, positioners can be categorized by gain type into direct and reverse action positioners. Direct action positioners increase the output signal with an increase in input signal, while reverse action positioners decrease the output signal as the input signal increases, satisfying specific control needs.

Signal Types and Intelligence


Control valve positioners can be classified as ordinary control valve positioners or fieldbus electrical control valve positioners based on the nature of their input signals. Ordinary control valve positioners have analog pressure or electrical signals as inputs, while fieldbus electrical control valve positioners receive digital signals, suitable for modern automation systems.

Smart electric control valve positioners feature advanced functions that can handle nonlinear compensation in the forward channel and support functionalities like PID control. This enables smart control valve positioners to automatically adjust based on actual working conditions, improving control accuracy and system performance, especially in dynamically changing environments.

Conclusion


Control valve positioners play a crucial role in modern industrial automation. By properly selecting and configuring these devices, one can significantly enhance system operational efficiency and safety. Understanding the types, working principles, and applications of control valve positioners helps optimize control strategies in practice, achieving precise flow and pressure regulation and ensuring the stability and safety of production processes.
