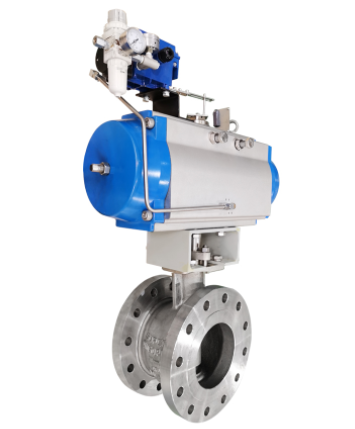

Basic Knowledge of Eccentric Rotary Plug Control Valves


Eccentric rotary plug control valves are highly efficient fluid control devices widely used across industries such as chemical processing, pharmaceuticals, and wastewater treatment, owing to their unique design and exceptional performance. This article provides a detailed exploration of the working principles, features, common issues, solutions, and practical application cases of eccentric rotary plug control valves, offering readers a comprehensive understanding of this technology.

Working Principles


At the heart of an eccentric rotary plug control valve is the eccentrically rotating spherical valve core seated within the valve body. Its operational principle revolves around adjusting the flow of media based on the relative positioning of the eccentric sphere and the valve seat.

Open Position: When the valve is open, the eccentric sphere rotates relative to the seat, creating a gap through which the media flows. The size of this gap is controlled by the pneumatic signal to the control valve actuator.

Closed Position: Upon valve closure, the pneumatic signal causes the eccentric sphere to move closer to the seat, gradually making contact and exerting a specific sealing force to shut off the control valve.

Key Features of Eccentric Rotary Plug Control Valves


Eccentric rotary plug control valves demonstrate several significant features that contribute to their popularity and extensive industrial application.

Disruption of Crystallization and Agglomeration: Capable of breaking up crystals and agglomerates during valve closure, making them particularly suitable for handling crystalline, agglomerated, and impure media. Specialty valves designed for caustic soda applications leverage this capability.

Simple Flow Path and Self-Cleaning Performance: The valve's streamlined flow path design and high Kv value enhance its self-cleaning performance, reducing maintenance requirements and prolonging service life.

Compact Size and Lightweight Construction: Compact valve body design ensures minimal footprint and ease of installation and operation.

Proportional Control: Suitable for proportional control applications when equipped with a positioner. This capability ensures precise control over the valve, adapting to various process requirements.

Multiple Sealing Options: Available in both hard and soft sealing options. For enhanced reliability, hard sealing with wear-resistant alloy overlays is recommended to withstand demanding conditions.

Common Issues and Solutions


Despite their numerous advantages, eccentric rotary plug control valves may encounter specific challenges in practical applications. Below are detailed analyses of these issues along with effective solutions:

1. Water Hammer Phenomenon


Issue Description: Water hammer occurs due to pressure fluctuations generated when liquids or gases are suddenly forced to stop or change direction within a pipeline system, particularly noticeable when valves close abruptly. It can lead to noise, vibrations, pipeline and equipment damage, and increased maintenance costs.

Solution: To prevent water hammer, employ fast-closing eccentric rotary plug control valves. These valves effectively mitigate pressure surges and shock waves that can damage equipment. Our silent eccentric rotary plug control valves are renowned for their effectiveness in preventing and eliminating water hammer issues.

2. Backflow


Issue Description: Backflow issues often occur at pump discharge points, potentially causing pump reversal, energy loss, and increased equipment wear.

Solution: Utilize fast-closing and tightly sealing valves, such as spring-assisted inline eccentric rotary plug control valves. These valves effectively prevent backflow, ensuring correct media flow direction and avoiding unnecessary losses and repair costs.

3. Oversized Valves


Issue Description: Oversized valves may lead to frequent opening and closing, causing instability in internal valve components and increasing the risk of failures.

Solution: When selecting eccentric rotary plug control valves, base the valve size on actual application needs rather than just pipeline dimensions. Ensure stable operation in fully open or closed positions to avoid unnecessary vibrations and premature failure.

Application Cases


To better illustrate the practical applications of eccentric rotary plug control valves, consider the following typical examples:

Chemical Industry: Essential for processes involving crystalline substances, where eccentric rotary plug control valves effectively break down crystals to ensure fluid flow.

Pharmaceutical Industry: Requires precise fluid control, where eccentric rotary plug control valves provide stable proportional control.

Wastewater Treatment: Adapted for handling flow of impure media, reducing blockages and maintenance needs.

In conclusion, the unique advantages and widespread applications of eccentric rotary plug control valves in industrial settings are evident. Their efficient fluid control capabilities, excellent self-cleaning performance, and adaptability make them excel in handling complex media and challenging conditions. While practical challenges may arise, thoughtful design and selection can effectively address these issues. Eccentric rotary plug control valves not only enhance production efficiency but also reduce maintenance costs, making them indispensable in modern industrial production.
