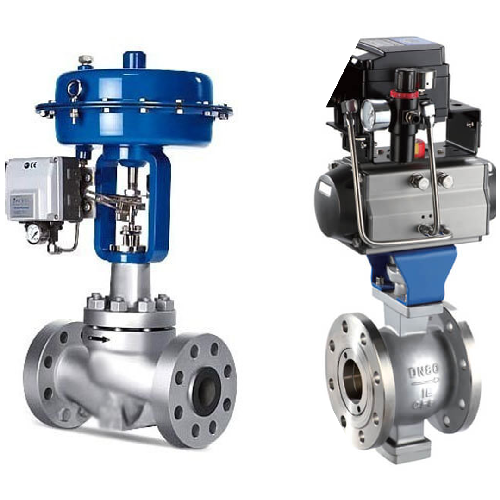

Choosing between Double-Seated and V-Notch Ball Control Valves


Among the many types of control valves, double-seated control valves and V-notch ball control valves play an irreplaceable role in specific industrial applications with their unique design and functions. This article will deeply explore the design concept, structural characteristics, advantages and limitations of these two control valves, as well as their application scenarios and comparative analysis in practical applications, in order to provide users with more accurate selection guidance and application strategy.

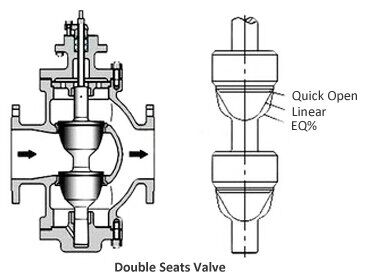

Double-Seated Control Valve


The double-seated control valve is a common industrial valve whose design and operating principle make it excellent in fluid control and regulation. The following is a detailed introduction to the double-seated control valve.




1. Design Structure


Due to the design of the upper and lower two seats, the large pressure difference can be balanced, so that the valve can work stably under high pressure difference conditions.
Due to the separate design of the upper and lower seats, the valve is not easy to produce a large unbalanced force during operation, thus prolonging the service life of the valve.


2. Advantages and Application Scenarios


Double-seated control valve is very suitable for dealing with industrial processes with large pressure difference and relatively loose leakage requirements, such as middle and low pressure difference processes in some chemical production.
In the case of equal caliber, the standard requirements for the actuator can be reduced, reducing the complexity and cost of operation.


3. Limitations

The flow path structure of double-seated control valve is more complex, resulting in greater movement resistance, which may limit its application in high-precision regulation.
Spool stability of double-seated control valve is not as good as other types of control valves, and may not perform well in some processes with higher precision control requirements.


V-notch Ball Control Valve


The V-notch ball control valve is a specially designed industrial control valve whose unique structure and working principle make it excellent in some specific industrial applications. The following is a detailed introduction to the V-notch ball control valve.




1. Design Characteristics


The V-notch ball control valve's spool adopts V-notch design, and the spool is quickly removed from the seat when it is opened, reducing the operating torque and the wear of the valve parts, and extending the service life of the valve.
The V-notch opening design of the ball control valve ensures stability and accuracy in small opening adjustment, and can effectively overcome the poor performance of traditional linear travel valves in small opening.


2. Strengths and Application Scenarios


The flow path structure of V-notch ball control valve is simple and straight-through design, and the movement resistance is small, which is suitable for industrial processes requiring large range adjustment and high precision control.
It will maintaining stable flow characteristics under high pressure differential conditions reduces noise and vibration in the system.


3. Special Application


V-notch ball control valve have a outstanding performance in  high-precision flow control situations requiring avoidance of cavitations and improvement of the accuracy of the control, especially in chemical, oil and gas industries widely used.


Comparative Analysis


In industrial fluid control, double-seated control valves and V-notch ball control valves are common control valve types, with different design concepts and structural characteristics, suitable for different process requirements and operating conditions. The following is a comparative analysis of the two control valves in their main aspects.


1. Flow Path Design and Dynamic Characteristics


Two-seat control valve: The complex flow path structure leads to large active resistance, which limits its application in high-precision control.
V-ball valve: Simple through-flow design, low resistance, suitable for industrial applications requiring precision control and stability.


2. Application Scenario


Double-seated control valve: suitable for dealing with large pressure difference but not strict leakage requirements of the process flow.
V-notch ball control valves: Suitable for industrial environments requiring high precision control, stable performance and long-term reliability, especially in situations with high pressure differences and high flow requirements.

Through the above analysis of the respective characteristics of the double-seated control valve and the V-notch ball control valve, it can be seen that the double-seated control valve performs well in the process of handling large pressure differences but not strict leakage requirements, and the V-notch ball control valve is particularly prominent in industrial applications requiring high precision and stable performance. The correct selection and application of these control valve types will help improve industrial production efficiency, ensure the quality of production products, and ensure the stable operation of industrial processes.
