Common Measures for High-Pressure Control Valve Cavitation

High-pressure control valves are widely used in industrial processes where precise regulation and control of fluid flow, pressure, and other parameters are required. However, cavitation can pose significant challenges to valve performance and longevity, especially under conditions of high pressure differences and high-flow media. Cavitation not only causes damage to valve components but can also affect the overall system's stability. Understanding the mechanisms of cavitation and its impact on high-pressure control valves, along with implementing effective protection measures, is essential to ensure long-term reliable operation.

Mechanisms of Cavitation and Its Impact on High-Pressure Control Valves

Cavitation occurs when the pressure in a fluid drops below the fluid's vapor pressure, leading to the rapid formation of vapor bubbles. These bubbles form at the throttling point of the valve or other restricted fluid paths. As the fluid continues to flow and the pressure increases again, the bubbles collapse or implode, releasing a significant amount of energy. This energy release causes intense shockwaves that impact the valve's internal surfaces, resulting in material damage. Typically, cavitation happens after the throttling point, where the pressure recovers above the saturation vapor pressure, leading to the bubbles collapsing and damaging the valve.

The primary consequences of cavitation in high-pressure control valves are:

1. Valve Structural Damage

The energy released when bubbles collapse causes shocks on the valve core, seat, and other components, creating pitting and forming small holes. Prolonged exposure to cavitation can lead to material fatigue and corrosion, eventually causing valve failure.

2. Noise and Vibration

The collapse of bubbles generates explosive sounds, often causing noticeable noise during valve operation. Cavitation-induced vibrations can also destabilize the valve, potentially damaging the connected piping or valve structure.

3. Performance Degradation

Cavitation can alter the fluid characteristics in the valve, reducing control accuracy and affecting the overall efficiency and stability of the system.

Conditions for Cavitation in High-Pressure Control Valves

Cavitation is more likely to occur under the following conditions.

1. Large Valve Openings

When the valve is open wide, the pressure drop across the valve is more significant. The pressure of the fluid after throttling is more likely to drop below the saturation vapor pressure, facilitating cavitation.

2. High Pressure Recovery

When the pressure after the throttling point recovers quickly, exceeding the fluid's saturation vapor pressure, the energy released from the collapsing bubbles intensifies, exacerbating cavitation.

3. Fluid Properties

Different fluids have varying saturation vapor pressures. Therefore, the fluid's temperature and pressure directly affect the likelihood of cavitation. For example, steam and certain high-temperature fluids are more prone to cavitation.

Protection Measures for Cavitation in High-Pressure Control Valves

To effectively manage cavitation issues, modern high-pressure control valve designs incorporate several protective features aimed at mitigating cavitation's impact and extending the valve's service life.

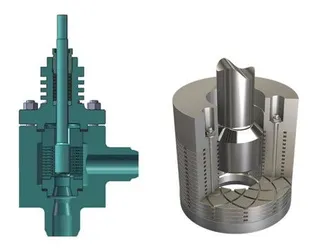

1. Multistage Throttling Structure

The multistage throttling design divides the pressure drop into multiple smaller stages, ensuring that each pressure drop keeps the pressure at the throttling surface above the fluid's saturation vapor pressure. By reducing the pressure drop at each stage, this design helps slow the rate of pressure reduction and lowers the chances of cavitation.

2. Orifice Jet-Type Structure

Replacing traditional guide bushings and valve seats with orifice jet-type throttling components helps solve the problem of bushing loosening. The orifice jet-type structure disperses the fluid's impact force, reducing damage to the valve's sealing surface and structure when bubbles collapse. Additionally, this design can withstand most of the pressure drop, minimizing cavitation-related damage and extending the valve's lifespan.

3. Cavitation-Resistant Materials

Traditional hard alloys have limited effectiveness against cavitation. Therefore, modern high-pressure control valves use materials that offer superior resistance to cavitation and erosion. These materials not only have high hardness but also possess good toughness, offering better protection under high-pressure, high-flow conditions, and reducing material damage caused by cavitation.

4. Optimized Valve Design

The design and selection of valves must specifically address the prevention of cavitation caused by excessive pressure drops. For example, avoiding operating valves under high differential pressures and selecting valves based on the system's actual operating conditions help ensure that the pressure does not drop too low during throttling, preventing cavitation.

5. Control of Pressure Recovery

For applications with high-pressure differentials, controlling the rate at which pressure recovers after the throttling point can prevent rapid recovery and minimize cavitation damage. Proper control of pressure recovery reduces the energy released when bubbles collapse, thus mitigating the destructive impact on the valve.

Conclusion

Cavitation presents a significant challenge to high-pressure control valves, especially under conditions of large valve openings or high pressure differentials. It not only causes damage to the internal components of the valve but can also affect the stability and safety of the entire system. By employing protective measures such as multistage throttling, orifice jet-type structures, cavitation-resistant materials, and optimizing valve design, the impact of cavitation can be minimized, improving the valve's durability and performance. Proper valve selection, material choice, and design optimization are key to ensuring the long-term stability and reliable operation of high-pressure control valves.
