The Importance and Design Features of Control Valve Plugs

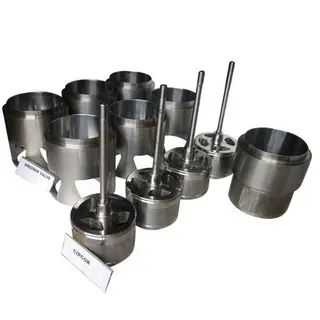

The plug is a critical component of control valves, responsible for the core function of regulating fluid flow. As a movable part, the plug effectively opens or closes the fluid passage in conjunction with the valve seat, enabling precise control of fluid flow. By adjusting the throttling cross-sectional area between the plug and valve seat, control valves can dynamically modulate fluid flow to meet process control requirements under various operating conditions.

Flow Characteristics and Design

The shape and design of the plug directly impact the flow characteristics of the control valve. Common flow characteristics include:

Linear Characteristics: The flow rate has a linear relationship with the valve position, suitable for systems with strict flow variation requirements, such as water supply and drainage systems.
Equal Percentage Characteristics: The percentage change in flow rate remains constant at different valve positions, ideal for applications with significant demand fluctuations, such as fluid mixing in chemical processes.
Quick-Opening Characteristics: The flow rate increases rapidly at small openings, typically used in scenarios requiring fast opening and closing, such as emergency shutdown systems.
Parabolic Characteristics: The relationship between flow rate and valve position is parabolic, suitable for certain special control requirements, such as specific types of regulation systems.

Factors Influencing Design

The dimensions of the plug and valve seat, the design of the internal flow path, and the selection of plug materials all affect the flow capacity and performance of control valves. A well-designed plug ensures efficient fluid flow within the valve, enhancing the durability and reliability of the valve.

Diversity in Plug Structure

The structural design of plugs is diverse and can be mainly categorized into linear and rotary types. Each type of plug structure has unique features suited to different application needs and operating conditions.

1. Linear Plugs

Piston-type Plugs: Widely used, offering excellent sealing performance suitable for most control scenarios. However, piston-type plugs may face issues with excessive unbalanced forces at high flow rates, reducing control accuracy.
Sleeve-type Plugs: Compared to piston types, sleeve plugs provide greater flow capacity. Their design facilitates easy disassembly, making them suitable for frequent maintenance. However, sleeve plugs tend to have weaker sealing performance and are prone to wear, potentially leading to leaks and compromised functionality.

2. Rotary Plugs

Rotary Plugs: Change the flow area between the plug and valve seat through rotational motion, suitable for applications requiring quick opening and closing as well as flow regulation, such as gas pipelines and chemical reactors.

Advantages and Disadvantages of Sleeve Plugs

While sleeve plugs offer advantages in flow control, they also present certain drawbacks:

Wear and Leakage Issues: Over prolonged use, sleeve-type plugs are prone to wear, which may lead to inadequate sealing and increased leakage, impacting safety and control effectiveness.
Complex Internal Structure: The design of sleeve plugs is relatively complex, with numerous internal flow paths and components, increasing maintenance and repair challenges.
High Maintenance Costs: For example, the Fisher ED series sleeve valves feature a balanced plug design that includes up to five specialized gaskets, leading to frequent replacement of wear components and higher maintenance costs.

To address these issues, many sleeve valves incorporate quick-disassembly features to enhance maintenance efficiency and reduce repair costs.

Cavitation-Resistant Plug Design

Cavitation in control valves primarily arises from high pressure differentials and excessive flow rates. Typically, when the pressure differential (Δp) exceeds 2.5 MPa, the pressure at the throttling point drops sharply, leading to vaporization. To prevent damage from cavitation to the valve body and plug, manufacturers have implemented various effective design solutions.

1. Perforated Cage Plugs

Designed for high-pressure drop applications, these plugs effectively mitigate cavitation, noise, corrosion, and vibration issues. They control flow characteristics through the distribution of holes, ensuring that the fluid pressure at every point within the valve exceeds the saturation vapor pressure at that temperature.

2. Balanced Plug Design

This design incorporates balance holes that effectively direct fluid pressure to the balancing chamber on the opposite side of the plug, significantly reducing unbalanced forces. However, balanced plugs are not suitable for applications containing large solid particles or crystalline materials to avoid clogging the balance holes.

Conclusion

The design of control valve plugs is crucial, influencing the valve's flow characteristics, performance, and reliability. Through continuous innovation and specialized designs, plugs can adapt to diverse industrial application needs, ensuring precise and efficient fluid control. The selection and design of plugs not only reflect the manufacturer’s technical capabilities but also directly impact the operational safety and stability of the entire control system. In future developments, plug design will continue to evolve to meet the increasing demands of the industry, driving ongoing advancements in control valve technology.
