Pneumatic Ball Valve Design for Harsh Operating Conditions

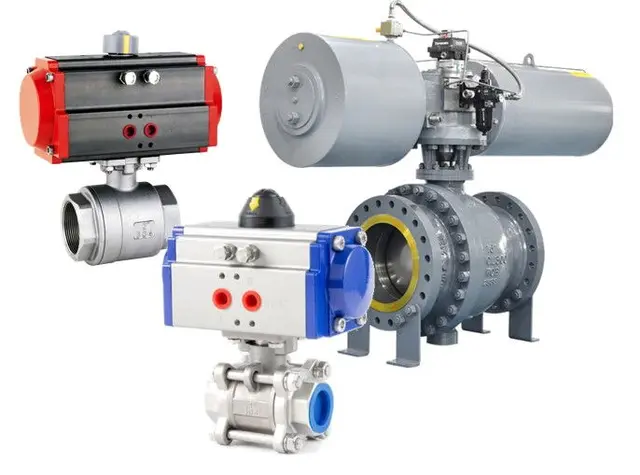

Pneumatic ball valves are widely used in industrial automation control systems, with their core function being the regulation of fluid (media) flow to bring the controlled process as close as possible to the set point. In various industrial environments, pneumatic ball valves play a crucial role. Particularly in harsh operating conditions, the design requirements for pneumatic ball valves are elevated. These conditions typically involve extreme factors such as high temperatures, high differential pressures, and high flow rates, placing high demands on the valve's materials, sealing design, and valve body structure. This article delves into the key design considerations and challenges of pneumatic ball valves under these complex conditions, considering factors such as high temperature, high differential pressure, flow rate, corrosive environments, and vibration.
Material Selection and Challenges in High-Temperature Environments
The material selection for pneumatic ball valves is critical in harsh conditions, especially in high-temperature environments. High temperatures not only affect the mechanical properties of the materials but also cause thermal expansion and creep in the valve components. Therefore, the key factors to consider in design include the material's thermal stability, wear resistance, and oxidation resistance.
1. Creep and Fracture at High Temperatures
At elevated temperatures, materials used in pneumatic ball valves face significant challenges. For instance, materials like carbon steel can experience creep or fracture when exposed to temperatures above 425°C, resulting in a significant loss of mechanical strength. In such cases, the valve body material typically needs to be upgraded from carbon steel to alloys with better high-temperature resistance, such as high-temperature stainless steel, titanium alloys, or nickel-based alloys. Austenitic stainless steel, due to its lower carbon content, offers excellent high-temperature performance and is commonly used in high-temperature environments.
2. Thermal Expansion and Heat Treatment
In high-temperature environments, materials experience thermal expansion, causing changes in the dimensions of the valve body and internal components. Different materials have varying coefficients of thermal expansion, which can lead to loose fittings or even seizing. Therefore, designers need to carefully calculate the thermal expansion coefficient to ensure proper valve operation under high-temperature conditions.
Moreover, heat treatment processes are essential for enhancing material performance under high temperatures. For example, alloy steels and stainless steels typically undergo high-temperature tempering or quenching to improve their oxidation resistance and high-temperature strength. Heat-treated materials effectively prevent mechanical stress failures due to thermal expansion.
3. Wear and Erosion of Internal Components at High Temperatures
At high temperatures, valve internals, such as the valve ball and seat, may experience significant wear or erosion. As the temperature rises, the fluid's viscosity, corrosiveness, and other properties change, accelerating wear and corrosion. Therefore, high-temperature, wear-resistant materials such as hard alloys or ceramic materials should be used for internal components to improve durability. Additionally, coatings or surface treatments, such as wear-resistant coatings or surface nitriding, can be applied to enhance the wear resistance of the valve ball and seat.
Impact of High Differential Pressure and High Flow Rate on Pneumatic Ball Valves
In high differential pressure and high flow rate conditions, the internal pressure and velocity in the pneumatic ball valve will significantly increase, which imposes higher demands on the valve's design. Specifically, when faced with high flow rates and high-speed fluids, the valve needs to possess strong pressure resistance, sealing performance, and impact resistance.
1. Effects of High Differential Pressure on Valves
High differential pressure subjects the valve seat and ball to considerable impact forces, which can damage the sealing surfaces of the valve seat. To address this, pneumatic ball valves in high differential pressure applications often use alloy steels with strong pressure resistance and enhance the sealing capability of the valve seat. For instance, metal-to-metal sealing structures are commonly employed to counteract the challenges posed by high differential pressure. Moreover, attention should be given to the sealing surfaces between the valve body and seat, often utilizing composite sealing materials or metal gaskets to improve the sealing effect.
2. Erosion and Cavitation at High Flow Rates
In high flow rate environments, the high-speed movement of fluids can lead to severe erosion of the valve internals. This is particularly true when the fluid contains solid particles or gas bubbles, as the impact forces from the high flow rate exacerbate the wear on valve components, reducing the valve's service life. Additionally, gas bubbles in the fluid may cause cavitation during fluid flow, further damaging the internal surfaces of the valve.
To prevent erosion and cavitation caused by high flow rates, the internal components of pneumatic ball valves must be designed with appropriate materials tailored to the specific operating conditions. Corrosion- and wear-resistant alloy steels or stainless steels are commonly used, and coatings or surface hardening treatments are applied to the valve ball and seat to reduce erosion.
Design Considerations for High-Temperature and High Differential Pressure Conditions
In extreme conditions involving both high temperature and high differential pressure, the design of pneumatic ball valves becomes particularly complex. This not only involves material selection and thermal expansion calculations but also necessitates considerations for valve sealing, pressure balance, and control of working gaps.
1. Sealing Design for High Temperatures
In high-temperature environments, the performance of sealing materials can be significantly impacted. Rubber seals generally have poor high-temperature resistance, while materials such as flexible graphite and PTFE (Polytetrafluoroethylene) exhibit excellent high-temperature performance. Therefore, pneumatic ball valves in high-temperature environments typically employ high-temperature sealing materials, such as graphite or metal alloy seals.
Special attention should be given to the selection of sealing pressure. At high temperatures, the hardness and strength of sealing materials may decrease, affecting the sealing performance. Designers must carefully choose sealing pressure based on the material characteristics to ensure the valve maintains effective sealing at elevated temperatures.
2. Thermal Expansion and Working Gap Design
In high-temperature conditions, thermal expansion of the valve body and internals can impact the valve's working gap. To prevent seizing due to thermal expansion, the working gap should be appropriately increased in the design. Additionally, since different materials have significantly different thermal expansion coefficients, it is crucial to ensure that there is sufficient clearance between the valve body and internals to avoid friction damage due to excessive expansion.
3. Optimization of Valve Structural Design
In high-temperature and high-differential pressure conditions, the structural design of pneumatic ball valves must be carefully optimized. The pressure-bearing structure must be robust enough to withstand the significant impact forces caused by high differential pressures. Additionally, the fit between the valve seat and ball should ensure a reliable seal even in extreme conditions. During design, the valve components must avoid excessive deformation and material fatigue to ensure the valve's reliability and long service life.
Use of Non-Metallic Materials and High-Temperature Seals
Non-metallic materials, especially in high-temperature sealing applications, play a crucial role in the design of pneumatic ball valves. With the ongoing changes in industrial demands—particularly for high-temperature, high-pressure, and highly corrosive media—the use of non-metallic materials is becoming increasingly widespread. Non-metallic materials offer unique advantages in terms of high-temperature resistance, corrosion resistance, and sealing performance, thereby enhancing the overall performance and reliability of the valve.
1. Application of Flexible Graphite
Flexible graphite is a commonly used non-metallic sealing material in pneumatic ball valves for high-temperature and high-pressure conditions. Its key features include excellent temperature resistance, outstanding chemical stability, and good compressibility, making it ideal for sealing in extreme high-temperature environments. Flexible graphite can typically withstand temperatures up to 700°C and demonstrates excellent resistance to corrosion in oxygen, acids, bases, and other corrosive media, making it an ideal choice for handling high-temperature fluids.
Flexible graphite sealing rings effectively avoid the expansion or aging issues seen in traditional metal seals at high temperatures, ensuring the sealing performance of the valve. Its excellent flexibility allows it to maintain a good seal even under the influence of high temperature or high pressure, preventing leakage due to temperature fluctuations or pressure variations. Flexible graphite is widely used in pneumatic ball valves for sealing in high-temperature pipeline systems in industries such as petroleum, chemical, and power generation.
2. Application of PTFE (Polytetrafluoroethylene)
PTFE, a non-metallic material known for its high-temperature and corrosion resistance, has become an indispensable component of pneumatic ball valve sealing materials. PTFE typically operates within a temperature range of -200°C to +260°C, ensuring excellent sealing performance in many high-temperature conditions. PTFE is chemically stable and resistant to corrosion from acids, bases, salts, and solvents, making it highly suitable for applications in the chemical, pharmaceutical, and food industries.
The advantages of PTFE in high-temperature sealing applications are not only due to its stability at elevated temperatures but also its extremely low friction coefficient. This characteristic reduces friction between the valve body and ball, lowering the torque required for valve operation and improving smooth operation. In pneumatic ball valves, PTFE is commonly used to seal the contact surfaces between the valve seat and ball, particularly in systems where precise flow and pressure control are required.
However, PTFE has relatively low wear resistance, especially in high-flow or solid particle-containing fluid environments. In such cases, designers often enhance PTFE's wear resistance and impact resistance by adding fillers like carbon fiber or glass fiber.
Conclusion
The design of pneumatic ball valves under harsh operating conditions, such as high temperature, high differential pressure, and high flow rate, is considerably more complex. By carefully selecting materials, optimizing sealing designs, and managing working gaps and thermal expansion, pneumatic ball valves can operate stably in extreme conditions. In these environments, the valve's performance, sealing, and durability must be carefully considered. As technology continues to develop, the design of pneumatic ball valves will evolve towards higher efficiency and greater stability to meet the demands of industrial automation.
