Design and Applications of Sleeve-type Control Valves

Sleeve-type control valves are really important in fluid control systems. They shine in situations where you need precise flow control and reliability. Thanks to their unique design and structure, they perform exceptionally well with various types of fluid media. In this article, we'll dive into the design, working principles, advantages, and special features of sleeve-type control valves.

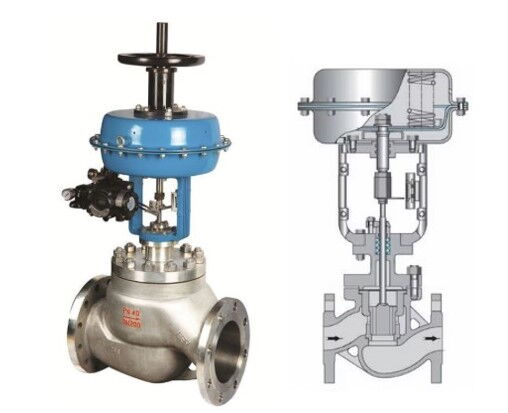

Basic Structure and Working Principle of Sleeve-type Control Valves

The main components of a sleeve-type control valve are the valve core and the sleeve. This design simplifies the internal structure of the valve. Unlike traditional control valves, it reduces the number of parts that are prone to wear and tear. The tight fit between the valve core and the sleeve ensures that the core stays properly aligned during operation, preventing issues like misalignment or blockages caused by side pressure. This structure also helps the valve maintain a low wear rate over time, which means better flow control over a longer period.

How It Works

The way a sleeve-type control valve works is pretty straightforward. The valve core moves to adjust the size of the flow path, which controls the fluid flow. The valve core is axially guided within the sleeve, ensuring it stays aligned with the valve seat. This helps the valve adjust flow accurately. Additionally, the sleeve and valve body are sealed using a double-seal system, making sure the valve performs well under varying pressures.

Design Advantages of Sleeve-type Control Valves

The design of sleeve-type control valves offers several key benefits. These advantages make them stand out, especially in complex and demanding applications. With optimized design and material choices, these valves not only improve efficiency but also boost reliability and durability. Here's a look at the main design benefits.

1. Precise Flow Control

Sleeve-type control valves are known for their ability to precisely regulate flow. The close fit between the valve core and the sleeve helps prevent fluid leakage, which means the flow control is more accurate. The axial guidance of the valve core also prevents it from shifting out of alignment. This keeps the flow steady and prevents any unwanted fluctuations. Thanks to these features, sleeve-type control valves are particularly useful in applications where precise flow control is critical, like in the petrochemical, natural gas, and pharmaceutical industries.

2. Simple Structure and Lower Maintenance Costs

One of the biggest advantages of sleeve-type control valves is their simple structure. With just the valve core and sleeve as the main components, these valves have far fewer parts compared to traditional control valves. This not only makes the valve easier to manufacture but also reduces maintenance costs and failure rates. The main components of the valve are optimized for better durability, so you don't have to worry about frequent replacements or repairs.

3. Better Guiding Performance

The sleeve-type design offers excellent guiding performance. The valve core is guided well along its axis, which prevents it from being pushed out of alignment due to side pressure or changes in pressure. With a proper axial length and overall guidance, the valve core stays aligned with the valve seat, improving sealing performance and the accuracy of flow control.

4. Increased Durability and Vibration Resistance

These valves are built to last. With a heavy-duty metal guiding structure, sleeve-type control valves can effectively absorb vibrations and shock loads, which reduces wear and tear on the valve. This design helps the valve perform better under conditions with high-frequency vibrations or high-pressure shocks. As a result, sleeve-type control valves are particularly useful in industries like oil and gas, petrochemical, and anywhere high vibration or shock loads are common.

Advantages of Sleeve-type Control Valves in Applications

Due to their unique design and strong performance, sleeve-type control valves are used across many industries. They especially excel in applications that require precise flow control, wear resistance, corrosion resistance, and the ability to handle high-pressure or high-temperature environments. Here's a breakdown of how these valves perform in different applications.

1. Great for Abrasive and Solid Particulate Media

Sleeve-type control valves are ideal for fluids containing solid particles. Since the guiding parts inside the valve don't extend to the valve seat interface, solid particles won't damage the seat. The sleeve's shorter length and placement above the valve seat further optimize guiding performance. When dealing with slurry or other abrasive fluids, these valves prevent jamming and wear, ensuring consistent flow control.

2. Handling Special Media like Wax Oils

Sleeve-type control valves work well with special media like wax oils. Even if the pipeline is completely blocked by wax and sand, the valve can still operate properly, keeping the flow under control. This makes sleeve-type control valves especially useful in industries like petroleum, natural gas, and chemicals, where complex or high-viscosity fluids are common.

3. Perfect for High-Pressure, High-Temperature Environments

The sleeve-type control valve is designed to handle extreme conditions, like high pressure and high temperatures. Its heavy-duty guiding design and dual-seal system make sure it operates smoothly even in harsh environments. The precise fit between the valve core and sleeve ensures that it can regulate flow accurately, even in systems with large pressure fluctuations. That's why these valves are commonly used in industries like power generation and metallurgy, where high pressure and temperature are standard.

Balance Holes and Pressure Balancing

To ensure optimal performance, sleeve-type control valves usually come with balance holes. These balance holes help maintain pressure balance inside and outside the valve core. It's important to keep these holes clear to ensure the pressure balance stays stable. If the seal fails, some designs allow the core to remain balanced, preventing misalignment or damage. This ensures that the valve remains stable and reliable over time.

Maintenance and Trouble-Shooting

Although sleeve-type control valves are simple in structure, their seals and guiding systems still need regular maintenance. In applications involving solid particles or special media, it's important to clean the balance holes and guiding parts regularly to prevent blockages or excessive wear. This will help extend the valve's lifespan. If something goes wrong, a quick check of the seals and guiding system is usually enough to fix it. In some cases, you may need to replace the seals or the valve core, but overall, the maintenance costs are relatively low.

Conclusion

Sleeve-type control valves offer a simple yet effective design. They provide precise flow control, excellent wear and vibration resistance, and increased durability. These features make them a top choice for industries that require reliable and efficient fluid control. Whether in high-pressure, high-temperature environments or when handling solid particles or special fluids, sleeve-type control valves ensure smooth and accurate flow regulation. Their outstanding design and adaptability make them an ideal option for industries such as petroleum, chemicals, and power generation.
