Manual Operation Function of Pneumatic Control Valves

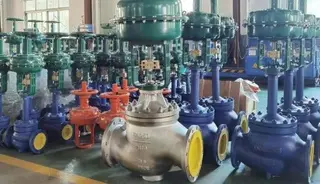

Pneumatic control valves are commonly used in industrial process control, especially for regulating parameters like flow, pressure, and temperature. These valves are usually powered by pneumatic actuators, which receive signals from systems like PLCs or DCS to adjust the valve stem's position. This allows for continuous or staged control of the medium's flow. However, in certain situations, automated control can be interrupted due to issues like air supply failure or actuator malfunction. When that happens, the manual operation feature of the pneumatic control valve becomes very important. To ensure the system remains stable and safe, most pneumatic control valves are equipped with manual operation functions. This feature helps when something goes wrong, like a loss of air supply or actuator failure. It also provides operators with more control during maintenance, testing, or other special conditions.

Manual Operation Methods

The way manual operation works depends on the design and structure of the valve. Different types of pneumatic control valves have different manual operation features, but the goal is always the same: to let the operator control the valve manually if the pneumatic actuator fails. Here are some common manual operation methods.

1. Pneumatic Control Valve with Handwheel

Pneumatic control valves with handwheels have a simple design. The operator just turns the handwheel to adjust the valve opening. This makes it easy to use and is perfect for situations where you need to control the valve manually. Here's how it works.

Turn off the air supply: Before starting, you need to shut off the air supply so it doesn't interfere with the valve during manual operation.

Use the handwheel to adjust the valve: Turn the handwheel to the desired position.

Relieve pressure and continue: If needed, use a pressure relief valve to reduce pressure before continuing to adjust the valve, ensuring everything stays stable.

Pneumatic control valves with handwheels are great for situations where you need to adjust the valve manually often. They're simple and easy to operate.

2. Pneumatic Control Valve without Handwheel

For pneumatic control valves that don't have handwheels, there's usually a separate manual operation device. For example, the valve might have a hexagonal head at the end of the actuator shaft. This allows the operator to use a special wrench to adjust the valve manually. The steps are as follows:

Check the valve's mode: Valves without handwheels often have electrical converters, and the control box will have a "manual" or "automatic" setting. You can switch to manual mode by turning the knob on the control box.

Separate the actuator from the valve stem: Loosen the connecting nut to disconnect the pneumatic actuator from the valve stem, so the valve is no longer controlled by air pressure.

Manually adjust the valve: Use a wrench or other tools to adjust the valve by turning the hexagonal head.

Even without a handwheel, this design still provides manual operation. It's especially useful when there's limited space or if you don't need to adjust the valve frequently.

3. Control Box with Manual Balance Valve

Whether the valve has a handwheel or not, many control valves also have a balance valve on the control box. This valve helps switch between automatic and manual control. When manual operation is needed, the operator simply switches the balance valve to the "manual" position. This connects the air cylinders and allows for manual control of the valve.

Advantages and Design of Manual Operation

Having manual operation on pneumatic control valves offers several clear benefits.

1. Improved System Reliability

Manual operation is crucial when the air supply is interrupted or the actuator fails. If automated control stops working, the valve can still be operated manually. This prevents downtime and ensures the process keeps running smoothly.

2. Greater Flexibility for Operators

Manual operation—whether through a handwheel, hexagonal head, or knob—lets operators have more control in special situations. This is especially useful during maintenance, testing, or emergencies, when fast adjustments are needed to keep the system safe.

3. Vibration Resistance

In environments with a lot of vibration, pneumatic control valves with manual operation are often designed to be vibration-resistant. Their structure helps minimize the effects of vibrations, ensuring the valve works steadily.

4. Excellent Sealing

Many pneumatic control valves use O-ring seals or adjustment screws to improve the sealing between the valve plug and stem. This prevents leaks during manual operation. The design of the adjustment screws and locknuts also ensures a tight seal between the valve body, cover, and plug when the valve is opened or closed.

Steps for Manual Operation Adjustment

If you need to perform manual operation on a pneumatic control valve, follow these steps.

Shut off the air supply: Before making adjustments, make sure the air supply is completely turned off to prevent interference.

Separate the actuator from the valve stem: Loosen the connecting nuts using the proper tools (like a wrench or screwdriver) to disconnect the actuator from the valve stem.

Adjust the valve: For valves with handwheels, just rotate the handwheel to the desired position. For valves without handwheels, turn the control box knob to "manual" mode and adjust the valve using the manual device.

Final adjustments: Once the adjustments are complete, reconnect the actuator and tighten the connecting nuts to keep the valve in a stable position.

Restore automatic control: Finally, turn the air supply back on and check that the automatic control works properly, so the actuator can take over again.

Advantages of Pneumatic Control Valves with Manual Operation

Pneumatic control valves with manual operation combine the benefits of automatic control with the ability to make manual adjustments in emergencies. These valves have several key advantages.

Automatic and Manual Control in One: Normally, the pneumatic actuator controls the valve automatically, but if there's an air supply issue or malfunction, the operator can switch to manual control to keep things running smoothly.

Adaptability to Challenging Conditions: This design helps the valve handle complex conditions while maintaining precise control over flow and pressure. This ensures the process remains stable and safe.

Improved System Reliability and Safety: The manual operation feature lets operators quickly respond in emergencies. By adjusting the valve manually, they can either keep the system running or safely shut it down.

Conclusion

The manual operation feature in pneumatic control valves is essential for ensuring the reliability of industrial automation systems. Whether dealing with an air supply failure, actuator malfunction, or special conditions, manual operation gives operators the flexibility and control they need to keep things running smoothly. Combining automated and manual control features makes these valves more adaptable and reliable, ensuring they're an important part of modern industrial systems.
