Eccentric Rotary Control Valves: Features & Future Development

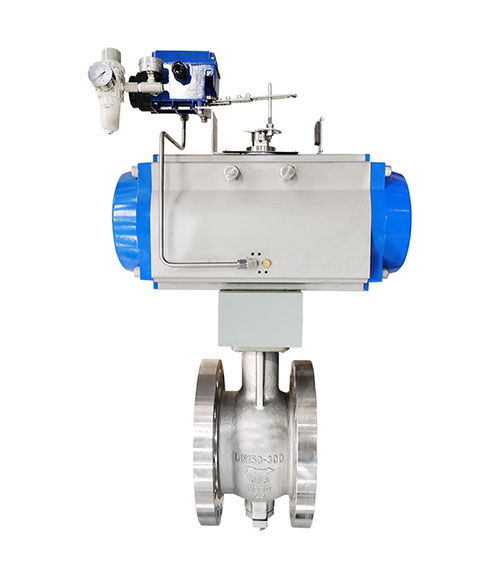

An eccentric rotary control valve is a specially designed control valve that regulates fluid flow through the movement of an eccentric sector ball in relation to the valve seat. When the valve opens, the eccentric ball rotates a certain angle away from the seat, creating a gap that allows fluid to pass through. The degree of opening is controlled by a pneumatic actuator, with the air pressure signal determining the size of the gap and thus controlling the flow rate. When closing, the air pressure causes the eccentric ball to gradually move towards and press against the seat, achieving a complete seal. In this article, we will discuss the key features and future development of the eccentric rotary control valves.

Key Features of the Eccentric Rotary Control Valve

The eccentric rotary control valve, with its unique design and powerful functionality, has demonstrated exceptional performance. Below are its key features, which provide a strong technical foundation for the valve's widespread use in various challenging conditions.

1. Self-Cleaning Capability

The design of the valve ensures that the ball can break up any crystallization or deposits on the seat during closing, making it ideal for handling media prone to crystallization or clogging. This self-cleaning feature ensures smooth and stable operation even in challenging conditions.

2. Simple Flow Path and High Flow Coefficient

The internal structure of the valve is simple, with a short and smooth flow path, resulting in low flow resistance and a high flow coefficient (kV value). This makes it suitable for applications requiring high flow capacity. Its self-cleaning ability also ensures long-term operation in harsh environments.

3. Compact Size and Lightweight

Compared to traditional control valves, the eccentric rotary valve is smaller and lighter, making installation and maintenance easier. This compact design is particularly advantageous in space-limited or weight-sensitive applications.

4. Combined Advantages of Ball and Butterfly Valves

This valve integrates the quick shutoff capability of a ball valve with the precise flow regulation of a butterfly valve. It offers minimal leakage and a wide rangeability, making it suitable for applications that require accurate flow control.

5. High Dynamic Stability and Low Valve Effect

The valve exhibits excellent dynamic stability with reduced unbalanced forces, about half of those seen in traditional single-seat control valves. This ensures smooth operation across various conditions, and the flow characteristics remain stable without significant distortion.

6. Wide Temperature and Pressure Range

The valve can handle a wide range of temperatures and pressures, making it ideal for extreme conditions. The valve body material and structure can be customized to meet specific application needs, ensuring reliable performance in high temperature, low temperature, corrosive, or high-pressure environments.

7. Easy Maintenance and Modification

Adjusting the valve's flow capacity is simple and only requires replacing the seat, not the entire valve. The valve's internal structure is straightforward, allowing for easy application of corrosion-resistant or wear-resistant linings to meet various media demands.

Applications

Eccentric rotary control valves are widely used in scenarios that demand precise flow control and high flow capacity, particularly in industries like thermal power, petrochemicals, chemical production, and high-viscosity media handling. For example, in thermal power plants, these valves are used for regulating heating steam to deaerators and controlling main condensate flow. They are also advantageous when handling viscous media such as heavy oil, providing accurate control and fast response.

Technical Challenges and Future Development

Despite its many advantages, there is still room for improvement in the design and application of eccentric rotary control valves, particularly in the following areas.

1. Seal Structure Optimization

Enhancing the design of the valve's sealing structure through computer-aided design (CAD) will be a key focus of future research. More precise designs can improve sealing performance, reduce leakage, and enhance the valve's ability to handle complex media.

2. Frictionless Seal Technology

Exploring frictionless seal designs for eccentric rotary valves can minimize wear and tear, increasing their lifespan and reliability. This technology holds promise for self-operated and gas-tight eccentric rotary valve designs.

3. Application of New Materials

The use of advanced materials such as ceramics, high-hardness alloys, high-temperature coatings, and composite materials will improve the valve's resistance to wear and corrosion, allowing it to perform better in more demanding environments. Material research and development will be crucial to enhancing valve performance in the future.

4. Advances in Numerical Simulation

Numerical calculations for dynamic processes are essential for the design of eccentric rotary valves and other control valves. Simulating and calculating complex media, such as high-temperature dust, steam, pulp, or sediment, will greatly improve valve performance, reduce development costs, and shorten development cycles.

5. Actuator Improvements

Current pneumatic actuators still have limitations in terms of high-frequency operation, load capacity, and lifespan. Future research will focus on developing high-precision, long-life electric rotary actuators, and improving control precision through the use of new bus positioners.

6. Expansion into Special Applications

Fireproof, low-temperature, ultra-high-temperature, high-pressure, and corrosion-resistant eccentric rotary valves have great potential in specialized working conditions. Future market development in these areas will drive the growth of the industry.

Conclusion

Eccentric rotary control valves, with their unique design and versatility, have demonstrated superior performance in various industries. Their self-cleaning capability, precision in regulation, and wide temperature adaptability make them ideal for handling complex conditions. In the future, through improvements in seal structure, material applications, and actuator technology, eccentric rotary control valves will continue to play a vital role in modern industrial processes.
