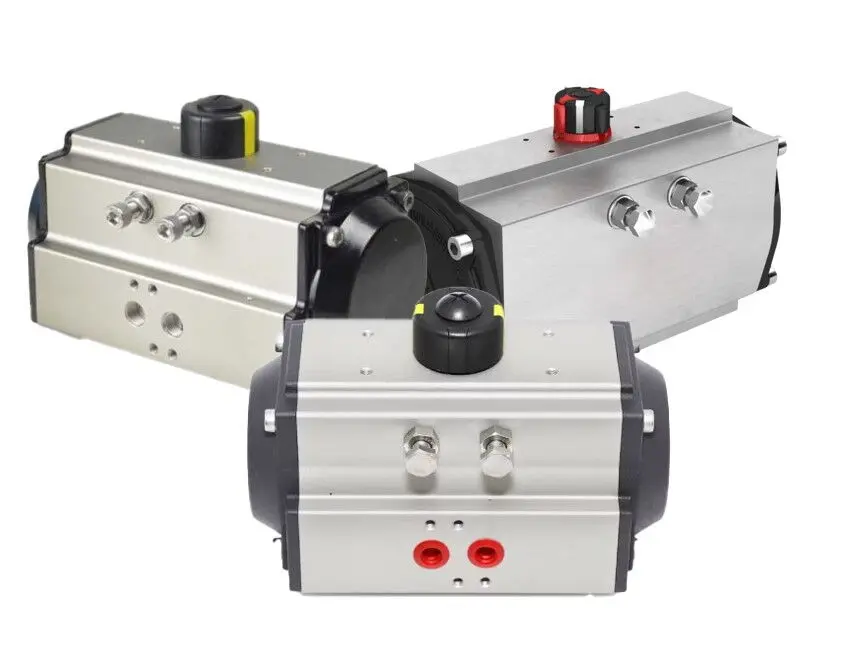

In the field of industrial automation, pneumatic actuators serve as key control components, and their switching response speed has a crucial impact on the overall operational efficiency of the system. Whether it is precise control on the production line or rapid shutoff in emergency situations, the performance of pneumatic actuators directly affects the safety and efficiency of production. This article will detail several effective methods to improve the switching response speed of pneumatic actuators, helping you optimize equipment performance and enhance production efficiency.

The Importance of Pneumatic Actuator Switching Response Speed

The switching response time of a pneumatic valve refers to the time from receiving the control signal to the completion of the directional valve's switching action, which is usually divided into opening time and closing time. For general industrial applications, the normal switching time of a pneumatic valve is around 5 - 10 seconds. However, in some special situations, such as emergency shutoff systems, the switching time of the pneumatic valve must be within 2 seconds, and in some cases, a rapid response of less than 1 second is required. This rapid response capability is vital for ensuring production safety and preventing accidents. For example, in chemical production, once a dangerous situation is detected, the pneumatic valve needs to quickly cut off the gas supply to prevent the leakage of harmful gases and protect the safety of personnel and equipment.

What Affect the Switching Response Speed of Pneumatic Actuators?

Before exploring methods to improve the switching response speed of pneumatic actuators, let's first understand the main factors that affect their response speed.

1. Air Supply

The pressure and flow rate of the air supply are fundamental factors affecting the response speed of pneumatic actuators. If the air supply is insufficient, even if the actuator itself performs well, rapid switching cannot be achieved. For example, when the inlet pipe is too narrow, the air supply cannot keep up, leading to a drop in pressure and thus affecting the actuator's response speed.

2. Pipeline Design

The diameter and length of the pipes through which the gas passes also affect the response speed. A small pipe diameter can restrict the gas flow, prolonging the switching time; while a long pipe can increase the delay in gas transmission.

3. Actuator Type

There is a difference in response speed between single-acting and double-acting pneumatic actuators. Single-acting pneumatic actuators generally have a faster response speed than double-acting ones because they only require a single-direction air supply to drive them.

4. Internal Structure of the Actuator

The design and condition of components inside the actuator, such as the cylinder bore and valves, also affect the response speed. If the cylinder bore is too small, the speed of gas entering and exiting will be limited; and the speed at which the valves open and close directly affects the actuator's response time.

5. Control System

The transmission speed and accuracy of the control signal are also influencing factors. If the signal transmission is delayed or unstable, even if the actuator itself performs well, rapid response cannot be achieved.

Methods to Improve Pneumatic Actuator Switching Response Speed

After understanding the factors that affect the response speed of pneumatic actuators, we can take targeted measures to improve their switching response speed. Here are some practical methods.

1. Adding an Air Receiver

Adding an air receiver in front of the pneumatic actuator is an effective method. The role of the air receiver is not to increase the pressure of the incoming air supply, but to provide a stable air source for the actuator. When the inlet pipe is too narrow and the air supply cannot keep up, the air receiver can serve as an emergency air source reserve, ensuring that the actuator can quickly obtain sufficient air when needed. This method is particularly suitable for large control valves and situations with high air consumption. For example, in some large chemical equipment, adding an air receiver can significantly improve the response speed of the pneumatic actuator, ensuring rapid shutoff of the air supply in emergency situations.

2. Optimizing Pipeline Design

Replacing the pipes through which the gas passes with larger-diameter pipes can effectively improve the switching response speed of the pneumatic actuator. Large pipes can increase the gas intake and reduce the delay in gas transmission, thereby speeding up the actuator's switching speed. In practical applications, the appropriate pipe diameter can be determined through measurement and calculation to ensure that the gas flow meets the actuator's requirements. For example, if the original pipe diameter is 10 millimeters, replacing it with a 15-millimeter or 20-millimeter pipe may reduce the switching time by more than half.

3. Installing an Accelerator

An accelerator is an auxiliary device specifically designed to improve the response speed of pneumatic actuators. It can speed up the actuator's action by quickly releasing or supplementing gas. The installation and use of an accelerator are relatively simple, but it needs to be selected and adjusted according to the specific actuator model and application scenario. In situations where a high response speed is required, such as rapid switching systems on automated production lines, installing an accelerator can significantly improve production efficiency.

4. Selecting the Right Pneumatic Actuator

When selecting a pneumatic actuator for a valve, the switching time requirements of the valve should be fully considered. Under the premise of meeting safety requirements, the appropriate pneumatic actuator should be chosen based on the valve's no-load opening and closing torque and the torque required for opening and closing under pressure. Single-acting pneumatic actuators should be preferred whenever possible, as they generally have a faster response speed than double-acting ones. In addition, when selecting pipes and pneumatic accessories, consideration should be given to increasing the pipe diameter and selecting air control valves and quick exhaust valves to improve the actuator's intake and exhaust speed.

5. Adjusting Pneumatic Actuator Parameters

Check whether the control valve on the pneumatic actuator has been opened to the maximum. If it has, the signal air pressure or pipe diameter can be increased within a certain range. At the same time, increasing the air pressure and the size of the air supply pipe, enlarging the cylinder bore, and speeding up the exhaust valve can all improve the opening speed of the pneumatic actuator.

6. Equipping with Auxiliary Devices

Pneumatic actuators sometimes need to be equipped with auxiliary devices to improve their performance. Common auxiliary devices include positioners and handwheels. Positioners use feedback principles to improve the performance of the actuator, enabling it to accurately position according to the control signal from the controller. Handwheels, on the other hand, can directly operate the control valve when the control system is shut down due to power outages, air stoppages, no output from the controller, or actuator failure, thereby maintaining normal production.

Advantages of Pneumatic Actuators

Compared with electric actuators, pneumatic actuators have many unique advantages, which also make them excel in improving switching response speed.

1. Precise Control

The shaft of a pneumatic actuator can achieve precise and repeatable control. By adjusting the opening of the intake or exhaust valve, stepless speed regulation can be achieved, allowing for the adjustment of the motor's output power and speed, and thus precise control of the switching speed.

2. Clean and Environmentally Friendly

Pneumatic actuators use gas as the working medium, which is very clean and does not produce oil contamination. In contrast, electric actuators may leak oil during operation, and it is difficult to clean them thoroughly when restoring and repackaging.

3. Insensitive to Environmental Conditions

Pneumatic actuators are not affected by fluctuations in the external environment and can operate normally even in humid conditions. In contrast, electric sparks are very dangerous in humid environments and may cause safety accidents.

4. Cost-Effective

Pneumatic actuators are generally more economical than electric actuators, which can reduce project budgets. At the same time, their maintenance costs are relatively low, and they have a long service life.

Practical Application Case

To better illustrate the effectiveness of the methods for improving the switching response speed of pneumatic actuators in practical applications, let's look at a specific case.

1. Case Background

A chemical enterprise needs to quickly cut off the pipeline for transporting a hazardous chemical during the production process. The original switching time of the pneumatic valve was 5 seconds, but this was too long in emergency situations and did not meet safety requirements.

2. Solution

After analysis, the enterprise decided to adopt the following methods to improve the switching response speed of the pneumatic actuator:

Adding an air receiver in front of the pneumatic actuator to ensure sufficient air supply in emergency situations.

Replacing the original 10-millimeter diameter pipe with a 15-millimeter diameter pipe to increase the gas intake.

Installing an accelerator to further speed up the actuator's action.

Adjusting the control valve on the pneumatic actuator, increasing the signal air pressure, and appropriately enlarging the cylinder bore.

3. Implementation Results

After the above improvements, the switching time of the pneumatic valve was reduced from 5 seconds to 1.5 seconds, fully meeting the requirements for emergency shutoff. At the same time, due to the use of auxiliary devices such as air receivers and accelerators, the response speed of the actuator during normal operation was also significantly improved, leading to increased production efficiency.

Conclusion

Improving the switching response speed of pneumatic actuators is crucial for ensuring the safety and efficiency of industrial production. By adding air receivers, optimizing pipeline design, installing accelerators, selecting the right pneumatic actuators, adjusting actuator parameters, and equipping with auxiliary devices, the switching response speed of pneumatic actuators can be effectively improved. At the same time, the advantages of pneumatic actuators, such as precise control, cleanliness, environmental insensitivity, and cost-effectiveness, make them widely used in the field of industrial automation. It is hoped that the methods introduced in this article will be of help to you in optimizing the performance of pneumatic actuators in your actual work and improving production efficiency and safety.
