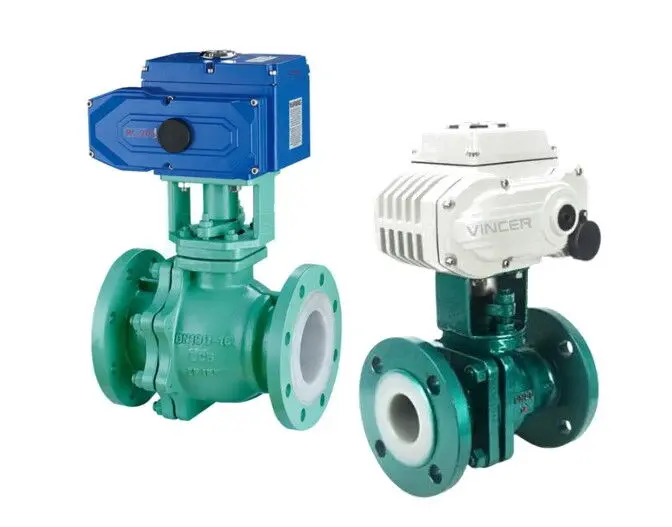

What are Electric PTFE-Lined Ball Valves?

The electric PTFE-lined ball valve is a valve commonly used to control the flow of fluid media. It has significant advantages such as simple structure, convenient operation, and corrosion resistance, and is widely used in chemical, petroleum, power, metallurgy, and other industries. It is especially suitable for controlling the flow of various corrosive media and high-temperature media.

The core component of this valve is a ball with a circular through-hole. The ball rotates around the centerline of the valve body via the valve stem, achieving the opening and closing of the valve. With its excellent performance and wide application range, the electric PTFE-lined ball valve has become the preferred choice for many engineers and operators.

This article will detail the structural features, working principle, material selection, control methods, application fields, as well as installation and maintenance of electric PTFE-lined ball valves, helping you fully understand this efficient and reliable industrial valve.

The structural design of the electric PTFE-lined ball valve is simple and compact, mainly composed of the valve body, bonnet, valve stem, valve seat, ball, and other parts. The surface of the ball is covered with fluoroplastic, which has very high chemical stability and corrosion resistance, effectively preventing corrosion of the valve body and interior. In addition, the valve has multiple connection methods, including flange and threaded connections, to meet different working condition requirements.

Valve Body: The valve body is the main part of the valve, usually made of stainless steel, carbon steel, or other metals, with good mechanical strength and corrosion resistance.

Bonnet: The bonnet is used to seal the interior of the valve body to prevent leakage, usually made from the same material as the valve body.

Valve Stem: The valve stem connects the ball and the drive device, achieving the opening and closing of the ball through rotation. The stem is usually made of stainless steel or carbon steel, with surface treatment to improve wear and corrosion resistance.

Valve Seat: The valve seat closely fits the ball to form a sealing surface. The seat is usually made of fluoroplastic or PTFE and other corrosion-resistant materials to ensure sealing performance.

Ball: The ball is the core part of the valve. Its surface is covered with fluoroplastic, maintaining good sealing performance in high-pressure and corrosive environments.

Electric PTFE-lined ball valves have multiple connection types, commonly flange and threaded connections. Flanged connections are suitable for larger diameters and higher pressures, providing secure and reliable connections; threaded connections are suitable for smaller diameters and lower pressures, and are convenient and quick to install. In addition, there are special connection methods such as welded connections, suitable for applications requiring high sealing.

The working principle of the electric PTFE-lined ball valve is simple and efficient. The valve stem is driven by a motor or pneumatic device, rotating the ball to open and close the valve. The ball rotates on the valve seat, changing the degree of opening of the passage, thereby controlling the flow of the medium. This working principle not only allows convenient operation but also enables rapid opening and closing, greatly improving work efficiency.

When the motor or pneumatic device starts, the valve stem drives the ball to rotate 90° clockwise. The through-hole of the ball aligns with the valve body passage, allowing the medium to flow smoothly. The valve is in the open position.

When the motor or pneumatic device starts in reverse, the valve stem drives the ball to rotate 90° counterclockwise. The through-hole of the ball is perpendicular to the valve passage, cutting off the medium, and the valve is in the closed position. Due to the tight fit between the ball and valve seat, the valve can achieve zero leakage, ensuring system sealing.

The main materials of the electric PTFE-lined ball valve include the ball, valve seat, and valve body. Common materials include stainless steel, carbon steel, copper, aluminum, and corrosion-resistant materials such as fluoroplastic and PTFE. Different materials are suitable for different media and working conditions, with properties such as corrosion resistance and high-temperature resistance.

Stainless Steel: Has good corrosion resistance and mechanical strength, suitable for most corrosive media.

Carbon Steel: Low cost, high mechanical strength, suitable for non-corrosive media.

Copper: Good conductivity and corrosion resistance, suitable for water and steam media.

Aluminum: Lightweight, good corrosion resistance, suitable for light media.

Fluoroplastic: Has extremely high chemical stability and corrosion resistance, suitable for strong acids, strong bases, and other strongly corrosive media.

PTFE (Polytetrafluoroethylene): High temperature and corrosion resistance, suitable for various chemical media.

Electric PTFE-lined ball valves are suitable for various working conditions and media and can withstand high temperature and high pressure. Common application fields include chemical, petroleum, power, and metallurgy industries, widely used to control corrosive and high-temperature media.

Chemical Industry: In chemical production, electric PTFE-lined ball valves control strong acids, bases, and salts. Their corrosion resistance and sealing performance ensure smooth chemical production and reduce safety risks from leakage.

Petroleum Industry: In oil extraction and refining, these valves control petroleum, natural gas, and other media. Their high-temperature and high-pressure resistance ensures safe operation of petroleum equipment and improves production efficiency.

Power Industry: In power systems, the valves control cooling water, steam, and other media. Their reliable sealing and rapid operation ensure normal operation of power equipment and reduce downtime.

Metallurgical Industry: In metallurgy, the valves control high-temperature and high-pressure corrosive media. Their high-temperature and corrosion resistance ensure stable operation of metallurgical equipment and improve production efficiency.

To ensure the service life and performance of electric PTFE-lined ball valves, pay attention to the following points:

The medium temperature should not exceed 150°C, as determined by the PTFE lining. Short-term temperatures can briefly reach 150°C, but long-term operation should remain below 120°C. If the medium temperature briefly reaches below 180°C and long-term below 150°C, PFA-lined fluoroplastic can be selected, though PFA is relatively more expensive.

PTFE-lined ball valves should not operate under negative pressure, as this may cause the lining to be sucked out or bulge, leading to malfunction in opening and closing.

Pressure and differential should be kept within allowed ranges. For example, bellows-sealed fluoroplastic control and globe valves have bellows made of PTFE, which may rupture under excessive pressure or differential. If operating pressure or differential is too high, consider switching to PTFE-packed valves.

The medium should not contain hard particles, crystals, or impurities to avoid wear of the ball or seat lining or bellows during operation. For media with hard particles, crystals, or impurities, consider Hastelloy-lined or rubber-coated ball valves.

Select valve diameter and opening according to the required flow (Cv value). Oversized valves operating at small openings may experience vibration due to fluid impact, possibly leading to stem damage or breakage over time.

Although electric PTFE-lined ball valves offer many advantages, some issues may still arise during use. Below are common problems and their solutions.

The sealing surface may suffer scratches, dents, or extrusion damage during opening and closing. Under high pressure, atomic interpenetration can occur between the two sealing surfaces, causing adhesion. When the surfaces move relative to each other, the adhered areas are prone to tearing. This phenomenon is more likely if the sealing surface has a higher roughness.

Solutions:

Choose high-quality sealing materials, such as Hastelloy or rubber-lined materials.

Regularly inspect the sealing surface for wear and repair or replace it in time.

Avoid rapid opening or closing of the valve during operation to reduce wear on the sealing surface.

During operation, the medium can cause wear, washing, or cavitation on the sealing surface, a phenomenon known as "medium erosion." This often results in localized damage. Therefore, the sealing surface must be well-processed, as alternating effects of medium erosion and chemical corrosion can severely degrade it.

Solutions:

Choose appropriate sealing materials, such as PTFE or fluoroplastics, to improve erosion resistance.

Install a filter at the valve inlet to remove hard particles and impurities from the medium.

Regularly inspect the sealing surface for wear and repair or replace it in time.

Human-induced damage can result from poor design, imprecise manufacturing, improper material selection, incorrect installation, improper use, or insufficient maintenance. These factors can all affect the valve's performance and lifespan.

Solutions:

Follow technical specifications strictly during design and manufacturing to ensure valve quality.

Select the appropriate valve model and specification to meet operational requirements.

Install the valve according to the instruction manual to ensure correct installation.

Operate the valve according to prescribed procedures to avoid damage from improper use.

Conduct regular maintenance and inspection to identify and address potential issues promptly.

Electric PTFE-lined ball valves are widely used in industrial fluid control due to their simple structure, ease of operation, and corrosion resistance. By carefully selecting valve materials, control methods, and installation and maintenance practices, long-term stable operation can be ensured, improving production efficiency and safety.

This article aims to help you better understand electric PTFE-lined ball valves, choose suitable products, and use and maintain them correctly to extend their service life. When selecting and using these valves, it is crucial to consider actual operating conditions and requirements to ensure the valve meets production needs. If any issues arise during use, it is recommended to contact the supplier or professional technicians promptly to discuss solutions and ensure normal valve operation.
