How to Select a High-Quality Control Valve Positioner
On this page

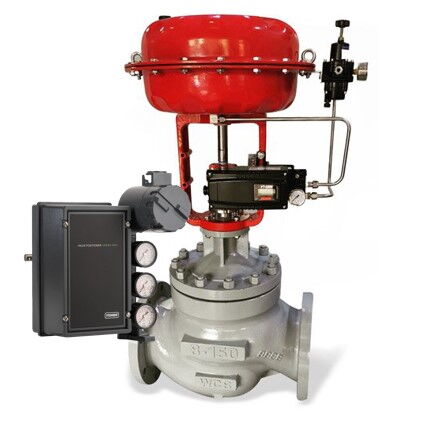

Control valve positioners are essential components in automation control systems, directly influencing the efficiency and stability of the entire setup. Selecting the right control valve positioner requires a thorough consideration of multiple factors to ensure optimal performance under actual operating conditions. Here are the key elements to focus on when choosing a high-quality control valve positioner.
Flexibility of Split-Range Function and Control Precision
The split-range function of a control valve positioner significantly enhances system flexibility, especially when a single input signal needs to control multiple valves. This feature allows the positioner to respond only to a specific range of input signals (e.g., 4-12mA or 0.02-0.06MPaG), enabling sequential control of multiple valves. However, to avoid potential misoperations or unauthorized adjustments, it is advisable to limit or disable this function in certain situations.
Control precision is also crucial. Ideally, the positioner should ensure that the internal components of the valve (such as the valve plug, stem, and seat) are accurately positioned under any direction and load conditions. Therefore, the positioner must exhibit excellent repeatability and accuracy to achieve the desired control effect with each adjustment.
Environmental Adaptability and Durability
The durability and environmental adaptability of a control valve positioner are critical considerations. Industrial environments may present challenges such as dust, moisture, and oil contamination, particularly for pneumatic or electro-pneumatic valve positioners. These positioners must possess strong anti-pollution capabilities to withstand harsh conditions. To this end, the positioner should comply with the ISA F7.3 standards for instrument air quality, ensuring stable operation even under adverse conditions.
Additionally, the positioner's housing and internal structure should feature corrosion resistance, shock resistance, and high-temperature tolerance to ensure long-term durability.
Ease of Zero and Span Adjustment
The ease of zero and span adjustment directly impacts the user-friendliness and maintenance costs of the positioner. If the zero and span adjustments influence each other, the calibration process becomes more complex, requiring operators to make repeated adjustments to achieve precise settings. Therefore, it is preferable to choose positioners where the adjustment process is relatively independent and straightforward, reducing calibration time and errors.
Some positioners also offer a "bypass" function, allowing for online calibration or maintenance without disrupting normal valve operation. This feature enhances system efficiency while reducing downtime and maintenance costs.
Airflow Capacity and Control Response Speed
The airflow capacity of the control valve positioner affects the system's response speed and control precision. Generally, the larger the airflow capacity of the positioner, the faster the system can respond to setpoint and load changes, reducing lag and improving control quality. Therefore, when selecting a positioner, priority should be given to those with higher airflow capacity and faster response speeds.
Moreover, the frequency characteristic (i.e., the steady-state response to sinusoidal input) is another critical metric for evaluating performance. A higher frequency characteristic indicates greater sensitivity to frequency response, thereby enhancing control performance. However, this parameter must be determined through stable experimental methods rather than theoretical derivation, considering both the positioner and the actuator to ensure reliability in practical applications.
Supply Pressure and Actuator Compatibility
Supply pressure and its compatibility with the actuator are also important factors in selecting a control valve positioner. Some positioners have a maximum rated supply pressure of 50 psi (approximately 0.35 MPa). If the actuator's operating pressure exceeds this value, the positioner may become a bottleneck, limiting the actuator's output thrust. This can affect the control precision of the system and lead to inaccurate valve positioning, increasing system instability. Therefore, the positioner's supply pressure must meet the actuator's requirements to optimize overall control system performance.
Action Mode and Versatility
The action mode (direct or reverse action) is necessary for certain applications. This feature allows for flexibility in switching between "signal increase-valve closes" and "signal increase-valve opens" modes, catering to different process requirements. A positioner with this capability can be used in a broader range of applications, enhancing the system's flexibility and adaptability.
Additionally, the steady-state air consumption of the positioner should be considered. In some plants, steady-state air consumption may be a limiting factor, so selecting a positioner with low air consumption can reduce operating costs while maintaining performance.
Feedback Mechanism and Ease of Use
The feedback linkage mechanism of the positioner must accurately reflect the valve plug's position to ensure precise control. The positioner should also be designed for easy installation and maintenance, featuring simple connections and a clear user interface to reduce the operator's workload and improve efficiency.
When selecting a high-quality control valve positioner, in addition to the basic performance parameters, it is essential to focus on factors such as the flexibility of the split-range function, environmental adaptability, ease of calibration, airflow capacity, supply pressure compatibility, action mode, and feedback mechanism design. By considering these aspects comprehensively, you can enhance the overall performance of the control system, extend the equipment's lifespan, reduce maintenance costs, and ensure stable operation under various complex conditions.
