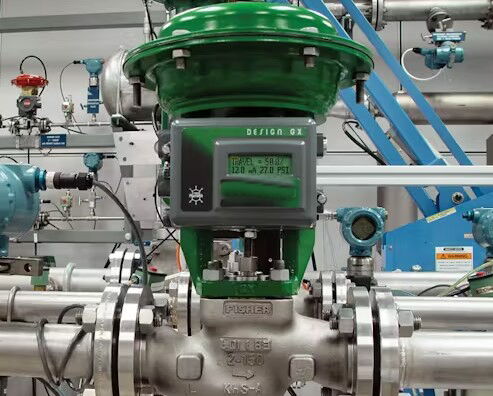

Impact of Deadband on Control Valve Performance

In industrial automation control, deadband is a critical factor that increases process deviation. The deadband phenomenon in control valve systems occurs when changes in the input signal fail to trigger corresponding changes in the process variable in a timely manner, affecting the precision and efficiency of system regulation and control. Deadband arises from multiple factors, especially in control valve design and operation, where friction, play, shaft twisting, and amplifier deadband are common sources.

Basic Concept of Control Valve Deadband

Deadband refers to a situation in a control system where changes in the input signal do not result in changes to the process variable until the controller's output reaches a certain level. This phenomenon typically occurs when the control valve or actuator responds sluggishly or experiences delays, particularly when the direction of the input signal changes.
When load disturbances occur, the process variable deviates from the setpoint, and corrective actions are generated by the controller to bring the process variable back to the setpoint. However, with a large deadband, the controller's initial output changes do not immediately result in changes to the process variable. Only when the controller's output exceeds a certain threshold, overcoming the deadband, will the process variable start to change.
Deadband implies that the controller must output larger changes to produce effective process adjustments. In precision process control, deadband significantly affects the system's response time and control accuracy.

Main Sources of Control Valve Deadband

The formation of deadband in control valves typically involves the following factors.

1. Friction

Friction is an important source of deadband in control valves, especially in rotary valves. Rotary valve seals often require high seat loads, leading to increased friction. When the seat load is too high, friction increases, causing the valve shaft to twist, preventing effective motion transmission to the control element, and thus increasing deadband. The friction also worsens as the valve's lubricating layer wears down over repeated operation.

2. Shaft Twisting

In rotary valves, shaft twisting is another significant cause of deadband. When the valve shaft twists due to load variations, the valve cannot accurately follow changes in the control signal, causing delayed system responses. Shaft twisting is usually accompanied by increased friction, which is a common issue that affects valve performance.

3. Amplifier Deadband

The deadband phenomenon in amplifiers or valve positioners can also make the control valve less responsive. In complex control systems, amplifier instability or delayed responses prevent signals from being transmitted to the control valve in real-time, thereby affecting the regulation of the process variable.

4. Play and Gap Issues

In control valve design, issues with play or gaps, particularly in gear-driven systems, can cause discontinuity in valve motion. These gaps create deadband during valve operation, affecting the precise transmission of control signals and, in turn, process control.

5. Packing Friction

For linear control valves, packing friction is another common source of deadband. As packing wears down or ages, it can cause increased friction, particularly when the valve direction changes. Changes in gaps and friction can exacerbate discontinuities in motion, resulting in deadband.

Impact of Deadband on Control Valve Performance

Deadband has a significant impact on control valve performance. Many performance tests for control valves focus on comparing input signals and actuator travel, neglecting the performance of the valve itself. However, the key to effective regulation of process variables lies in the dynamic performance testing of the valve under fluid conditions.
For instance, when the process variable changes, if the valve's response does not match the change in the control signal, deadband will affect control performance. The presence of deadband means that the control signal must undergo a certain amount of change before the process variable reacts, which not only increases response time but also reduces the system's control accuracy.
Friction is one of the primary contributors to deadband in control valves. Rotary valves are highly sensitive to friction at high seat loads, which causes the shaft to twist, preventing effective motion transmission. Additionally, packing friction can lead to deadband issues in linear control valves. As the valve ages, the wear of packing and other components increases deadband, affecting the precision and stability of the control system.

Optimization and Reduction of Deadband

To optimize control valve performance and reduce the impact of deadband, attention should be given to the following aspects during the valve design and manufacturing process.

1. Reduce Friction

A well-designed valve should minimize the impact of friction by using wear-resistant materials and precise manufacturing techniques. For rotary valves, an optimized seat design can effectively reduce friction and prevent shaft twisting.

2. Optimize Packing Structure

In linear control valves, packing friction is a major factor influencing deadband. Improving the packing structure and using high-performance sealing materials can effectively reduce deadband, improving the valve's response speed and accuracy.

3. Minimize Play and Gaps

Reducing gaps and play in valve systems, particularly in gear-driven devices, can prevent deadband caused by play. Precision gear systems and the accurate alignment of control components can enhance continuous valve motion.

4. Precision Manufacturing and Lubrication

Using precise manufacturing processes and high-quality lubricants during valve production helps reduce deadband. Wear and tear on the lubrication layer is often the cause of increased friction and exacerbated deadband. Regular maintenance and lubrication are crucial for extending the valve's service life.

5. Overall Control Valve Optimization

To achieve the best results in reducing process deviations, the total deadband of the valve assembly should be kept below 1%, ideally reduced to 0.25%. This requires each part of the valve to operate under high precision and efficiency, ensuring the rapid transmission of control signals and precise regulation.

Conclusion

Deadband is a crucial factor affecting control valve performance. In precision control systems, the presence of deadband can increase process deviations, reducing system control accuracy and response speed. Control valve design and optimization should address issues such as friction, play, shaft twisting, and packing friction. By focusing on precision manufacturing, optimizing packing structures, minimizing gaps, and performing regular lubrication, deadband can be reduced, ensuring that valves respond to small signal changes and enhancing the overall performance and stability of process control systems.
