Structure and Design of Pneumatic Ball Control Valves

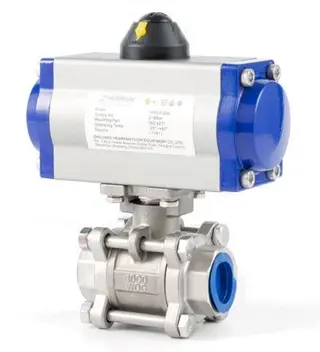

Pneumatic ball control valves are essential components in industrial automation systems, widely used in industries such as oil, chemicals, power, and natural gas. These valves control the opening, closing, and flow of fluids with precision, making their design and structure critical for performance, stability, and durability. A pneumatic ball control valve consists of several key components, including the valve body, valve cover, valve core, valve stem, seals, and actuator. Each of these parts plays an important role in ensuring the valve performs well under various operating conditions.

Valve Body and Valve Cover

The valve body is the main component of a pneumatic ball control valve, typically designed in a spherical or cylindrical shape, with an internal hole that controls the flow of the medium. The body must be strong and stable, and it should also resist corrosion, high pressure, and high temperatures to ensure long-term use in harsh environments. Materials such as cast steel, cast iron, or stainless steel are commonly used to manufacture the valve body. The material is selected based on the specific operating conditions, ensuring the valve can withstand high pressures, temperatures, and corrosive environments.
The valve cover is installed on the body and is used to secure the valve core and seals, ensuring the valve remains sealed and stable. The design of the valve cover often focuses on ease of maintenance and sealing effectiveness, preventing leakage and improving the overall reliability of the valve.

Valve Core and Valve Stem

The valve core is the heart of the pneumatic ball control valve, usually spherical, and rotates to control the flow of the medium. The rotation adjusts the size of the flow passage, enabling precise fluid control. The surface finish and precision of the valve core are crucial for sealing performance, so its manufacturing process and material selection are important. The valve core is often made of wear-resistant and corrosion-resistant materials such as stainless steel or alloy steel, ensuring reliable operation in extreme conditions such as high temperatures, high pressures, or chemical corrosion.
The valve stem connects the valve core to the actuator and is responsible for rotating the valve core. The stem's design needs to ensure sufficient strength and excellent corrosion resistance. The stem's sealing is also critical, usually achieved using packing or O-rings to prevent leaks. Additionally, the stem design must account for reverse torque to minimize friction and load during operation, ensuring smoother valve performance.

Seals

The seals in a pneumatic ball control valve include both the seat seal and stem seal, both of which directly impact the valve's sealing performance and, therefore, its effectiveness and lifespan. Common materials for seals include high-performance PTFE (polytetrafluoroethylene) or other materials resistant to high temperatures and corrosion, which effectively prevent medium leakage.
Seat Seal: This seal controls leakage within the valve body and ensures no medium escapes during the opening and closing processes. The seat seal must be resistant to wear, high temperatures, and corrosion, with materials such as PTFE, PPL, or metal alloys commonly used.
Stem Seal: The stem seal prevents leakage along the valve stem, typically achieved with O-rings, packing seals, or other soft sealing materials. Reliable stem sealing is crucial for the overall sealing and stability of the valve.

Pneumatic Actuator

The actuator in a pneumatic ball control valve is typically a pneumatic actuator that uses compressed air or another gas to rotate the valve core, thereby controlling the valve's opening and closing. The choice of actuator depends on factors such as working pressure, medium characteristics, and valve size. Pneumatic actuators are usually equipped with accessories like pressure regulators, positioners, and manual override devices to ensure reliable operation under various conditions.
Pneumatic Actuator: This actuator uses compressed air or other gases to rotate the valve core. It offers rapid response and precise control, making it suitable for most automation systems. Actuators come in single-acting or double-acting types. Single-acting actuators automatically close or open the valve when the air supply is cut off, while double-acting actuators require a continuous air supply.
Positioner and Manual Override: A positioner adjusts the valve's opening precisely, while a manual override allows for manual operation during air supply failures, ensuring reliability and emergency control.

Fire and Safety Design

Fire safety is critical for pneumatic ball control valves, especially in high-temperature situations such as fires. The valve's sealing and safety features must ensure that the valve remains sealed even in extreme conditions. The valve seat often includes a fire-resistant seal that creates a metal-to-metal seal between the ball and the seat during a fire, preventing leakage of the medium.
Additionally, the valve's packing gasket is typically made of high-temperature graphite material, which maintains its sealing ability even in hot environments. To prevent failure of the seat seal due to fire or contaminants, pneumatic ball control valves may also include a grease injection valve, which allows easy re-lubrication of the seal and helps reduce leakage.

Automatic Pressure Relief and Grease Injection

Pneumatic ball control valves feature an automatic pressure relief function that activates when the internal temperature increases and pressure rises beyond safe levels. The seat's outlet will automatically relieve pressure, preventing damage to the valve body or other safety issues. For added security, a safety valve can be installed on the valve body to further ensure pressure relief.
Additionally, the grease injection device allows for quick connection with a grease gun, making it easy to repair seat seals when leakage occurs. This feature helps maintain the valve's sealing ability over time, reducing the potential for leakage due to seal wear or damage.

Bi-directional Sealing and Zero Leakage Design

Pneumatic ball control valves are designed with bi-directional sealing, ensuring reliable sealing regardless of the fluid's flow direction. This design enables the valve to achieve zero leakage during pressure tests, whether during a pressure test or when closing the cavity. The bi-directional sealing enhances the valve's sealing ability and expands its application range, allowing it to perform well in complex working environments.

Conclusion

The design and structure of pneumatic ball control valves, through careful component configuration and the selection of high-quality materials, ensure efficient operation under various conditions. Their compact, reliable design, innovative safety features, and convenient operation make pneumatic ball control valves indispensable components in industrial automation systems. As technology continues to advance, pneumatic ball control valve designs will continue to evolve to meet increasingly stringent operating environments and process requirements.
