Understand the Working Flow Characteristics of Control Valves


In industrial systems, the performance of control valves is crucial for regulating flow and maintaining system stability. However, the working flow characteristics of control valves are not static; they are influenced by various factors. Specifically, the pressure drop across the valve is not constant but varies, primarily due to the characteristics of the pump and the dynamic changes in pipeline resistance. Understanding how these factors impact the pressure drop and working flow characteristics of control valves is essential for optimizing system performance and ensuring accurate control. This article explores these influencing factors and analyzes the working flow characteristics of control valves in different pipeline configurations.

Causes of Pressure Drop Variations


Before delving into the working flow characteristics of control valves, it is important to understand the fundamental factors affecting valve performance. Specifically, the pressure drop across the valve is not fixed but changes with system flow and pipeline resistance. We will examine how pump characteristics and pipeline resistance impact the pressure drop and working flow characteristics of control valves, setting the stage for a detailed discussion of flow characteristics in series and parallel pipeline configurations.

1. Pump Characteristics


Relationship between Pressure and Flow: The performance characteristics of a pump define the relationship between system pressure and flow. Typically, as flow decreases, the pressure generated by the pump increases. This is because the pump generates higher pressure at lower flow rates to maintain flow.

Nonlinear Characteristics: The pump's pressure-flow curve is often nonlinear, meaning that pressure variations are not consistent across different flow conditions.

2. Pipeline Resistance Variations


Resistance and Flow Relationship: Pipeline resistance losses are proportional to the square of the flow rate. As flow decreases, pipeline resistance also decreases, allowing more of the pump's pressure to act on the valve.

Dynamic Changes: As system flow varies, the resistance of the pipeline and the total system pressure drop change dynamically, directly affecting the operational state and performance of the control valve.

Working Flow Characteristics in Series Pipeline Configurations


In series pipeline configurations, the control valve is installed in line with the pipeline, making the impact of flow changes on the system particularly significant.

1. Pressure Drop Distribution Ratio (S Value)


Definition: The S value represents the ratio of the control valve's pressure drop to the total system pressure drop. When S=1, pipeline resistance loss is zero, and the entire system pressure drop is applied to the control valve, aligning the valve's working flow characteristics with the ideal characteristics.

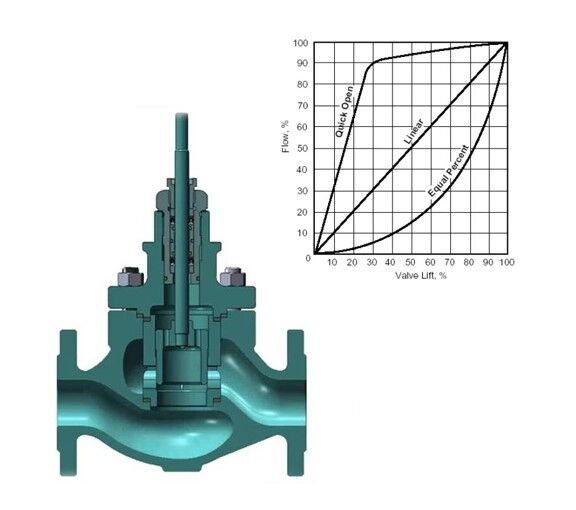

Impact: A decrease in the S value leads to increased pipeline resistance loss, resulting in a greater portion of the total system pressure drop being distributed across the pipeline. This reduces the valve’s full-open flow rate, narrows its rangeability, and distorts the working flow characteristic curve from ideal linear or equal percentage characteristics to quick-opening or linear characteristics.

2. Challenges in Practical Applications


Valve Selection and Load Conditions: When a control valve is oversized or the production load is low, the valve often operates at a small opening. To ensure the valve has a sufficient opening, it may be necessary to adjust process valves to increase pipeline resistance. This practice lowers the S value, distorting the working flow characteristics and impacting control quality.

Optimization Methods: Selecting the appropriate control valve and optimizing the resistance distribution in the pipeline are crucial for ensuring system stability. When using control valves, consider the actual flow range and load conditions of the system to optimize valve selection and configuration.

Working Flow Characteristics in Parallel Pipeline Configurations


In parallel pipeline configurations, the control valve is installed alongside the pipeline, typically including a bypass line. The working flow characteristics of the control valve are also significantly affected in this configuration.

1. Bypass Flow Impact


Flow Ratio (X Value): The X value represents the ratio of the full-open flow rate of the valve to the maximum flow rate of the total pipeline. When X=1, the bypass valve is closed, and the control valve’s working flow characteristics align with the ideal characteristics. As the X value decreases, the bypass valve gradually opens, reducing the system's rangeability and increasing leakage.

Recommended Settings: To maintain good control performance, it is recommended that the bypass flow does not exceed 20% of the total flow. The bypass valve opening can be part of system regulation, but its impact on working flow characteristics must be controlled.

2. Challenges in Practical Applications


Valve Selection and Bypass Configuration: In practice, if the control valve is improperly selected or production demands increase, the bypass valve may need to be opened to meet flow requirements. This can change the working flow characteristics of the control valve from ideal to operational characteristics, affecting control effectiveness.

Optimization Methods: In parallel pipeline configurations, ensuring the bypass flow is set appropriately and minimizing its negative impact on valve performance is essential. Optimizing the bypass settings and control valve configuration helps improve system regulation efficiency and stability.

In summary, the working flow characteristics of control valves are influenced by multiple factors, including system flow, pipeline resistance, and bypass flow, in both series and parallel pipeline configurations. In practical applications, effective valve selection, optimizing pipeline configurations, and controlling bypass flow can significantly enhance system control quality and performance. Understanding and addressing these influencing factors are critical for ensuring the efficient and stable operation of automatic control systems.
