What is Flow Coefficient (Kv Value) of Control Valves?


Control valves play a crucial role in industrial automation systems. One of the key parameters for evaluating the performance of a control valve is its flow coefficient (Kv value). Understanding and selecting the appropriate Kv value for a control valve is vital for maintaining system stability, ensuring precise control, and optimizing energy efficiency. This article provides a comprehensive analysis of the flow coefficient of control valves and the principles of valve selection.

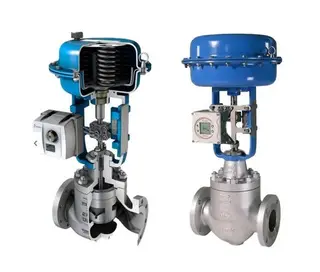

Flow Coefficient (Kv Value) of Control Valves


The flow coefficient (Kv value) is a central parameter when assessing the performance of control valves. It not only measures the valve's flow capacity but also impacts the control precision of the system. Below is a brief overview of the definition and variations of the Kv value.

1. Definition of Flow Coefficient (Kv Value)


The flow coefficient (Kv value) is defined as the amount of water (in cubic meters) that passes through a fully open valve per hour when the pressure drop across the valve is 1 bar (100 kPa). For instance, a control valve with a Kv value of 50 means that, under fully open conditions with a pressure drop of 100 kPa, 50 cubic meters of water can flow through the valve each hour. This value is typically provided on the valve's nameplate or in its specifications and is known as the rated flow coefficient.

2. Variation of Kv Value


The Kv value changes with the valve's degree of opening. As the valve moves from fully closed to fully open, the Kv value gradually increases. In practical applications, the Kv value is a critical parameter influencing flow regulation and the overall efficiency of the system. The Kv value at full opening is commonly used as a standard for comparison and selection during the valve selection process.

Control Valve Selection and Its Importance


Selecting the right control valve directly affects the stability and accuracy of the system. Choosing an appropriate valve involves calculating the required Kv value and considering operational conditions, flow requirements, and pressure factors. Below are key steps in valve selection and common pitfalls.

1. Selection Steps


When selecting a control valve, the first step is to calculate the required Kv value based on actual operating conditions, such as flow, pressure, and temperature. This calculation involves fluid properties, operating conditions, and system requirements. After determining the necessary Kv value, the appropriate valve should be selected and its size confirmed. It is common practice to choose a valve with the same or slightly smaller diameter than the original pipeline.

2. Common Selection Pitfalls and Their Impacts


Oversized Valve: Selecting an oversized control valve can result in the valve operating in a low-opening state for extended periods. This not only increases wear on the valve's sealing surfaces but can also cause fluid stagnation before the valve, potentially leading to water hammer if not addressed promptly. Water hammer can damage pipes and heat exchangers.

Undersized Valve: If a valve is too small, it will remain in a fully open state, losing its regulation capability. This can lead to decreased control precision, unstable flow regulation, and system performance well below design requirements.

Calculating the Kv Value


Calculating the Kv value is a crucial step to ensure the control valve meets actual operational needs. Accurate calculation requires considering various factors, including fluid type, valve type, operating conditions, and flow rate. The main factors and methods for calculating Kv value are detailed below.

1. Influencing Factors


Fluid Type: The type of fluid (steam, liquid, or gas) affects flow calculations and valve selection.
Control Valve Type: Different types of control valves (such as single-seat, double-seat, and angle valves) have varying flow capacities and characteristics.
Operating Conditions: This includes operating pressure, temperature, fluid composition, density, and pressure drop across the valve.
Flow Rate: The flow demand under actual operating conditions.

2. Engineering Design


In engineering design, the Kv value must be calculated in detail to ensure the selected valve meets actual operating requirements. The calculation process involves factors like fluid pressure drop, flow velocity, and physical properties of the fluid. Accurate calculation helps prevent system failures or performance degradation due to improper valve selection.

Principles of Valve Selection


When selecting a control valve, certain principles must be followed to ensure effective operation in actual applications. Key principles for valve selection are outlined below.

1. Kv Value Selection


Ensure that the Kv value of the selected valve is greater than the calculated Kv value to ensure the valve operates within 10% to 90% of its opening range under actual flow conditions. For steam media, it is recommended to select a valve with an opening greater than 60% to improve control accuracy and extend valve life.

2. Selection for Liquid Media


For liquid media, which are incompressible, factors such as flow velocity, pressure differential ratio, blockage flow, and pressure recovery coefficient should be considered. It is generally recommended to select a Kv value slightly larger than the calculated value to avoid flow insufficiency. Liquids have lower erosive capability on valves, so selecting a slightly larger Kv value is reasonable under low flow and pressure loss conditions.

3. Selection for Steam Media


For steam media, the Kv value should not be excessively large, as a large Kv value may lead to rapid corrosion of the sealing surfaces at small openings. It is advisable to increase the Kv value by 30% to 50% to account for practical flow conditions, avoiding excessive safety factors and maintaining good control performance.

Conclusion


The flow coefficient (Kv value) is a key parameter for assessing valve performance, impacting system stability and efficiency. Proper selection of Kv value requires considering fluid type, operating conditions, and actual needs. By performing detailed calculations and following appropriate selection principles, issues such as water hammer, pipe vibrations, and unstable control can be avoided, ensuring long-term stable operation of the system. Accurate Kv value calculation and selection principles are the foundation for achieving efficient control and optimizing system performance.
