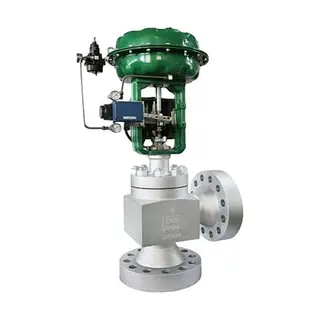

Product Name: Pneumatic Labyrinth Control Valve
Key Features: Single Seated, Labyrinth Cage
Body Material: ASTM A182 F91
Size: 3 Inch, DN80
Pressure: Class 1500 LB, PN250
Actuation: Pneumatic Diaphragm Actuator
Product Range
Body Material: Stainless Steel, Carbon Steel, Alloy Steel
Structure: Multi-stage Cage or Labyrinth Structure
Size Range: 1/2-8 Inch, DN15-DN200
Pressure Rating: PN50-PN420, Class 300-2500 LB
Fluid Mediums: Gas, Oil, Water, Acid, Steam
End Connections: Flanged, Welded, Threaded
Working Temperature: -29°C to +652°C
Flow Characteristics: Equal Percentage, Linear, Quick Open
Seat Leakage: Fci 70-2 Class IV, V, VI
Actuator Options: Pneumatic Actuators
