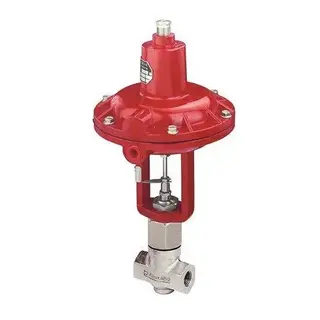

Product Name: Stainless Steel Globe Control Valve
Key Features: Unbalanced Single Seat Plug
Body Material: ASTM A351 CF8, CF8M, CF3, CF3M
Size Range: 1-12 Inch, DN25-DN300
Pressure Rating: Class 150-600 LB, PN16-PN100
Connection: Flanged, Welded (BW, SW)
Temperature Range: -196℃ to 450℃
Flow Characteristic: Linear, Equal Percentage, Quick Open
Rangeability: 50:1
Leakage: IEC 60534-4:2006 Class VI (Soft Seat), Class IV (Metal Seat)
Actuator Options:
Pneumatic:
1. Multi-spring Diaphragm Actuator
2. Piston Type Actuator
