Electric High-Temperature Control Valves: Function & Advantages
On this page

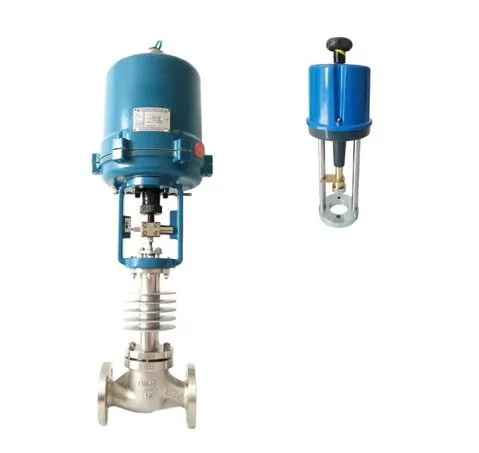

Electric high-temperature control valves are essential automation devices designed to meet the precise control requirements in high-temperature environments. These valves use electrical power to drive the valve mechanisms, utilizing components such as electric valve positioners, converters, solenoid valves, and position maintainers to achieve accurate on-off or proportional adjustments. They play a critical role in industrial automation systems, ensuring stability, reliability, and efficiency in process control.
Structure and Operating Principle
The design and operating principle of electric high-temperature control valves determine their performance in high-temperature settings. Below is a detailed explanation of their structural features and operating principles.
1. Structural Features
Electric high-temperature control valves consist mainly of the valve body, valve core, actuator, and accessories. Their design is tailored to handle high-temperature operating conditions to ensure long-term stable performance.
Straight-Through Low Flow Resistance Design: The valve body is optimized to minimize fluid flow resistance, reduce energy loss, and enhance flow capacity.
Single Seat with Top and Bottom Guiding: Designed with a single-seat structure for excellent sealing performance, and double guiding reduces valve core displacement, improving stability and sealing.
Electric Drive: The electric actuator converts electrical power into mechanical energy, enabling precise control and rapid response.
Auxiliary Equipment: Includes solenoid valves and position maintainers, which enhance control accuracy and reliability, ensuring stable operation under various working conditions.
2. Operating Principle
The electric high-temperature control valve operates as follows.
Initial State: Without power, the valve core remains in a partially open position, allowing medium to flow through the valve for initial processing.
Heating Phase: When power is supplied, the valve core fully opens, allowing the medium to flow into the main valve body for heating. The heating process is controlled by the electric actuator to maintain the medium at the appropriate temperature.
Temperature Regulation: Once the medium reaches the preset temperature, the sensor sends a signal to the electric actuator, which adjusts the valve core position to close the main valve core and stop heating.
Temperature Maintenance: If the medium temperature falls below the set value, the sensor sends another signal, causing the valve core to gradually open and reheat the medium until the temperature returns to the desired range.
This closed-loop control system ensures that the medium's temperature remains within the set range through real-time monitoring and adjustment, achieving precise process control.
Features and Advantages
Electric high-temperature control valves offer numerous advantages due to their unique design and functionalities, making them particularly suitable for high-temperature process environments. Here is a detailed overview of their notable features and benefits.
1. Easy Control
Electric high-temperature control valves use an electric drive system combined with electrical signal control, making the operation straightforward and intuitive. Users can precisely adjust the valve using standard current signals (e.g., 4-20mA, 0-10mA) or voltage signals (e.g., 1-5VDC). This design simplifies operation and allows easy integration into existing industrial automation systems for efficient control and monitoring.
2. Fast Response
Equipped with efficient electric actuators, these valves can quickly adjust the valve opening. This rapid response capability is crucial for applications that require immediate adjustments to process parameters, such as in rapidly changing production environments, ensuring continuity and stability.
3. Safety and Reliability
The design of electric high-temperature control valves adheres to intrinsic safety standards, eliminating the need for additional explosion-proof measures. Their robust construction and excellent sealing performance enable stable operation in various industrial environments, reducing safety risks during maintenance and operation. This reliability is particularly suited for safety-critical applications, such as in the chemical and oil industries.
4. High Precision Control
The valve achieves precise adjustment of the valve opening through linear stroke thrust. This design allows for highly accurate control of fluid flow, pressure, and temperature, making it ideal for applications requiring precise regulation, such as maintaining stable temperature or pressure.
5. Comprehensive Functionality
Electric high-temperature control valves integrate various functions, including servo operation, opening degree signal feedback, position indication, and manual operation. These features enhance system flexibility and simplify equipment maintenance and operation. The servo operation function ensures precise adjustment based on control system commands, while the feedback and position indication functions provide real-time status monitoring and feedback, aiding in effective management and adjustment.
6. High-Temperature Resistance
Specifically designed for high-temperature environments, these valves can operate reliably under extreme temperature conditions. The materials and structure are optimized to withstand mechanical stress and thermal expansion caused by high temperatures, ensuring long-term reliability. This high-temperature resistance makes them well-suited for processes involving high-temperature treatments, such as in petrochemical and metallurgical industries.
Selection Guide
When selecting an electric high-temperature control valve, several factors should be considered to ensure the best fit for specific application needs.
Valve Body Type: Choose the appropriate valve body type (e.g., straight-through single-seat, double-seat, angle type, or sleeve type) based on flow characteristics and process requirements.
Wear Resistance: For media containing abrasive particles, select materials with high wear resistance, such as hard alloys or ceramics.
Corrosion Resistance: For corrosive media, opt for corrosion-resistant valve materials like stainless steel or special alloys.
Medium Temperature and Pressure: Select valves that can handle high-temperature and high-pressure environments, ensuring material compatibility.
Avoiding Flashing and Cavitation: The design should prevent flashing and cavitation to avoid vibration and noise, extending the valve's service life.
Electric high-temperature control valves, with their superior control precision, rapid response, and high reliability, are crucial components in industrial automation systems. Their ability to withstand high temperatures and provide precise control makes them exceptional in demanding environments. Selecting the right valve enhances overall system efficiency and ensures process stability and safety, providing robust support for industrial applications.
